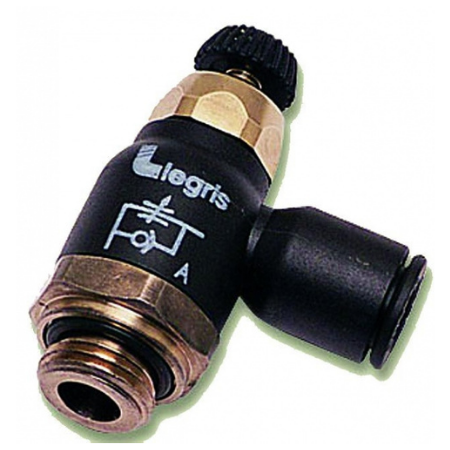

Legris 70620613 Bi-Directional Flow Control Regulator - Compact

Product Description

The Legris 70620613 is a bi-directional flow control regulator designed for efficient regulation of fluid flow. This compact model features a knob adjustment for precise control. It connects via a male thread to tube setup, specifically a quarter BSPP thread and a tube outer diameter of six millimeters.

• Composite construction for durability.
• Operates effectively with a maximum temperature of one hundred sixty degrees Fahrenheit.
• Pressure rating up to one hundred forty-five psi.

Product Highlights

This regulator is suitable for various applications requiring fluid control. Ideal for use in pneumatic systems, it provides reliable performance in commercial and industrial settings.

Product Information

Standard Information

• Brand: Legris
• Part Number: 70620613

Technical Specifications

• Female Port Type: N/A
• Connection Type: Male Thread to Tube
• Temperature Range [Max]: 160 °F
• Male Thread Type: BSPP
• Female Port Size: N/A
• Tube OD: 6 mm
• Male Thread Size: 1/4
• Direction of Flow: Bi-Directional
• Adjustment Type: Knob
• Pressure [Max]: 145 psi
• Temperature Range [Min]: 30 °F
• Configuration: 90°
• Material: Composite
• Weight: 0.046 LB
• EAN or UPC: 820099321219
