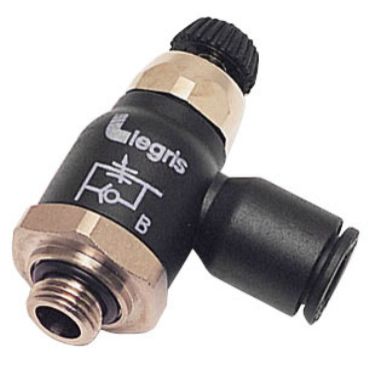

Legris 70611013 Compact Meter-In Flow Control

Product Description

Legris presents the 70611013 Compact Meter-In Flow Control, designed for effective flow regulation in pneumatic systems. This flow control valve mounts directly on cylinders to manage the exhaust and supply air.

• Composite 90 Degree Male Thread to Tube Flow Regulator
• Knob Adjustment for precise flow control
• 1/4 BSPP Thread with ten millimeter tube outer diameter

Product Highlights

This product allows for simple adjustments to flow rates, making it suitable for applications requiring precise control of cylinder speeds.

Product Information

Standard Information

• Brand: Legris
• Part Number: 70611013

Technical Specifications

• Male Thread Size: 1/4
• Tube OD: 10 mm
• Configuration: 90 degrees
• Material: Composite
• Male Thread Type: BSPP
• Temperature Range Min: 30 °F
• Temperature Range Max: 160 °F
• Pressure Min: 15 psi
• Pressure Max: 145 psi
• Direction of Flow: Meter-In
• Connection Type: Male Thread to Tube
• Adjustment Type: Knob
• Weight: 0.125 lb
• EAN or UPC: 820099320946
