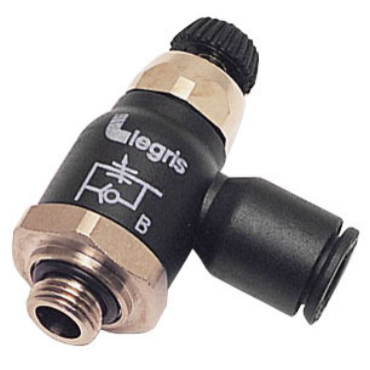

Legris 70610610 Compact Meter-In Flow Control

Product Description

The Legris 70610610 is a compact meter-in flow control that is designed for efficient air supply management. It mounts directly to cylinders, allowing for easy adjustment of air flow. With its one-piece structure and durable composite material, this flow regulator is built to last. It has a unique design for right-angle installation and features a push-to-connect fitting that simplifies the setup process.

• Composite construction ensures durability
• Rotating design allows for simple installation and adjustment
• Compatible with various pneumatic systems

Product Highlights

This flow control features an external knob for easy adjustment and supports a range of applications in air management.

Product Information

Standard Information

• Brand: Legris
• MPN: 70610610

Technical Specifications

• Tube OD: 6 mm
• Male Thread Size: 1/8
• Male Thread Type: BSPP
• Material: Composite
• Inch/Metric: Metric
• Configuration: 90 degrees
• Temperature Range [Min]: 32 °F
• Direction of Flow: Meter-In
• Pressure [Min]: 15 psi
• Temperature Range [Max]: 158 °F
• Adjustment Type: External Knob/Screw
• Connection Type: Male Thread to Tube
• Pressure [Max]: 145 psi
• Weight: 0.046 LB
• EAN or UPC: 820099320748
