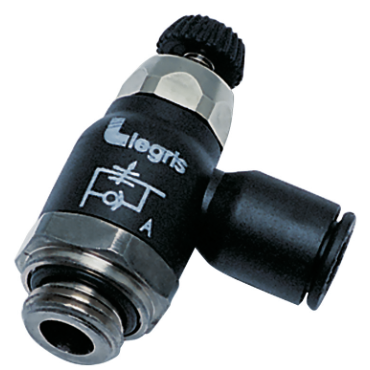

Legris 70600810 Compact Meter-Out Flow Control

Brand: LEGRIS
SKU: 70600810
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Legris 70600810 is a compact meter-out flow control valve designed for efficient air regulation. This valve mounts directly to cylinders, allowing intake air to flow freely while controlling exhaust air. The adjustment screw regulates the cylinder's speed by metering exhaust air effectively.

  • Compact design for easy installation
  • Recessed screw prevents unwanted adjustments
  • Rotates 360° for straightforward assembly

Product Highlights

This meter-out flow control valve is built to facilitate smooth operations in pneumatic systems. It is suitable for various applications where precision in air flow is essential.

Product Information

Standard Information

  • Brand: Legris
  • MPN: 70600810
Technical Specifications
Configuration
90 degrees
Overall Length
1.110 inches
Material
Composite
Overall Height [Min]
1.620 inches
Tube O.D.
8 mm, 5/16 inches
Adjustment Type
External knob/screw
Pressure [Min]
15 psi
Pressure [Max]
145 psi
Temperature Range [Min]
30 °F
Temperature Range [Max]
160 °F
Weight
0.077 lbs
EAN or UPC
820099320250
