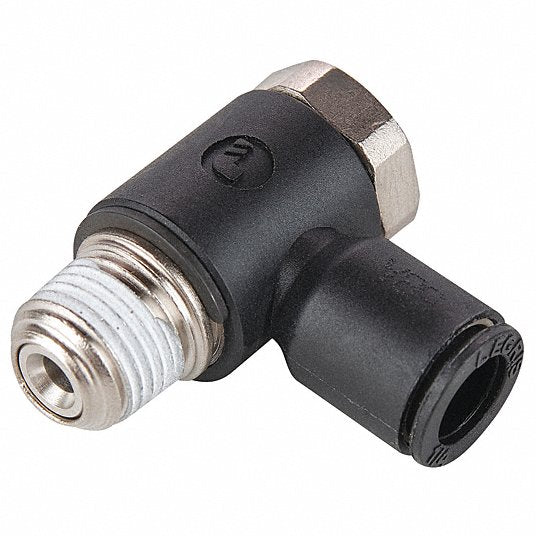

Legris 70155614 Knobless Compact Flow Control 90 Degree 1/4 in NPT

Product Description

Legris offers the 70155614 Knobless Compact Flow Control for controlling air flow directly to cylinders. This device allows for the free flow of intake air while metering out exhaust air through a precision adjustment screw. The exhaust regulation controls the speed of the cylinder.

• 90 Degree configuration for space-saving installation
• One-piece construction ensures durability
• Recessed adjustment screw prevents accidental changes

Product Highlights

This flow control fitting features a push-to-connect design and allows for rotation during installation for ease of use.

Product Information

Standard Information

• Brand: Legris
• MPN: 70155614

Technical Specifications

• Configuration: 90 degree
• Tube O.D.: 1/4 in
• Male Thread Size: 1/4 in
• Adjustment Type: Slotted screw
• Length: 0.890 in
• Direction of Flow: Meter-out
• Pressure Max: 145 psi
• Height: 1.040 in
• Material: Nylon
• Temperature Range Max: 160 °F
• Temperature Range Min: 30 °F
• Weight: 0.075 lb
• EAN or UPC: 820099538358
