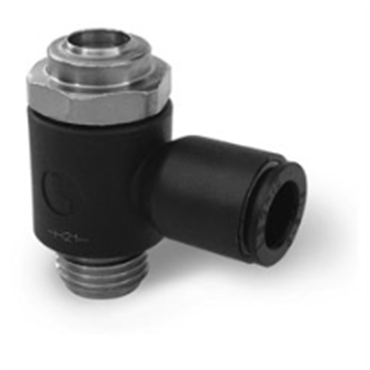

Legris 70105620 Knobless Compact Flow Control

Product Description

Legris 70105620 is a knobless compact flow control valve designed for efficient management of air flow in pneumatic systems. This valve features a direct mounting capability to cylinders, allowing for seamless integration. The intake air moves freely while exhaust air is metered, controlling the motion speed of the cylinder effectively.

• 90-degree configuration for versatility
• 10-32 male thread size with UNF threading
• Push-to-connect fitting for quick attachment

Product Highlights

This compact valve allows for secure adjustments with a recessed screw that prevents unwanted changes. Its one-piece construction, tapered threads, and built-in thread sealant facilitate right-angle installation, making it ideal for space-constrained applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 70105620

Technical Specifications

• Pressure [Max]: 145 psi
• Pressure [Min]: 15 psi
• Temperature Range [Max]: 160 °F
• Temperature Range [Min]: 30 °F
• Material: Nylon
• Male Thread Size: 10-32
• Hex Size: 8 mm
• Tube O.D.: 1/4 in
• Fitting Description: Flow Control
• Configuration: 90 degrees
• Adjustment Type: Slotted Screw
• Direction of Flow: Meter-Out
• Weight: 0.037 lb
