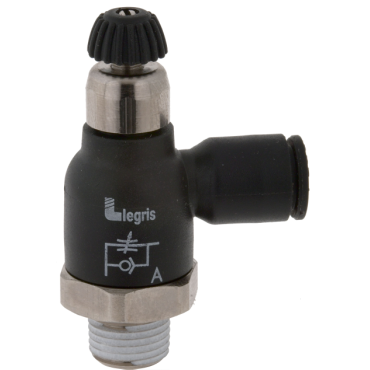

Legris 70101013 Compact Meter-Out Flow Control

Product Description

Legris offers the 70101013 Compact Meter-Out Flow Control, a valve designed to mount directly to cylinders. This device allows air intake to flow freely while controlling the exhaust air through a specialized adjustment screw. The exhaust air regulation manages the speed of the cylinder effectively.

• Includes a one-piece construction design.
• Equipped with tapered threads and pre-applied thread sealant.
• Designed for compact, right-angle installation.

Product Highlights

This flow control features a push-to-connect fitting that integrates smoothly into the control system. A recessed screw prevents unwanted adjustments and can rotate three hundred sixty degrees for easy assembly.

Product Information

Standard Information

• Brand: Legris
• Part Number: 70101013

Technical Specifications

• Pressure [Max]: 145 psi
• Adjustment Type: Slotted Screw
• Tube OD: 10 mm
• Temperature Range [Max]: 160 °F
• Material: Composite
• Pressure [Min]: 15 psi
• Male Thread Size: 1/4
• Temperature Range [Min]: 30 °F
• Direction of Flow: Meter-Out
• Connection Type: Male Thread to Tube
• Configuration: 90°
• Male Thread Type: BSPP
• Weight: 0.083 LB
• EAN or UPC: 820099317175
