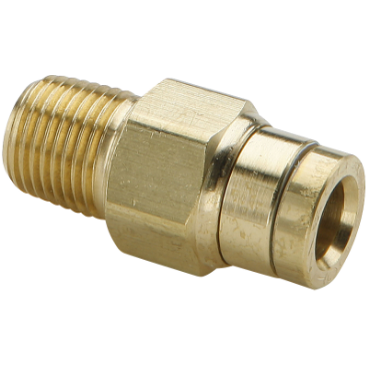

Legris 68PTC-3-2 PTC Composite Push-In Air Brake Fittings

Product Description

The Legris 68PTC-3-2 is a PTC composite push-in air brake fitting designed for automotive and truck applications. It simplifies the connection process between components and flexible tubing.

• Male connector for easy assembly
• Compatible with 3/16 inch tube outer diameter and 1/8 inch NPT
• Allows for quick and reliable air brake connections

Product Highlights

This fitting provides a tight, leak-free connection by pushing the tubing securely into the fitting. It can be easily disconnected by pressing the release cap, requiring no tools for installation.

Product Information

Standard Information

• Brand: Legris
• MPN: 68PTC-3-2

Technical Specifications

• Max. Working Pressure: 250 psi
• Working Temperature: -40 °F to 200 °F
• Suitable Fluids: Compressed air only
• Body Material: Nylon
• Fitting Angle: Straight
• Size Type: Fractional Sizes
• Thread Type: NPT
• No. of Ends: 2
• End Types: Tubing & NPT
• Thread Size: 1/8
• Tube O.D.: 3/16 inches
• Weight: 0.053 lb
• Options: Polypropylene black button
