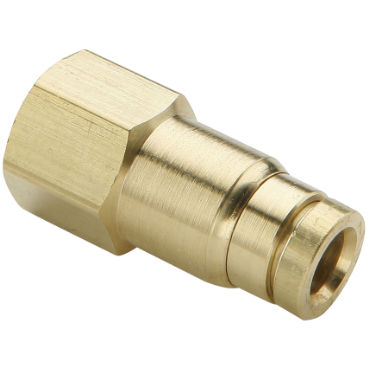

Legris 66PTC-5/32-4 PTC Composite Push-In Air Brake Fittings

Product Description

The Legris 66PTC-5/32-4 is a push-to-connect fitting designed for quick installation in automotive and truck applications. It connects components to flexible tubing effectively, ensuring a secure and leak-free fit. Simply push the tubing into the fitting for a tight connection. To remove, press the release cap. The fitting is made from durable glass-reinforced nylon, while the threaded areas feature nickel-plated brass for added strength.

• Easy push-to-connect design
• Constructed from glass-reinforced nylon
• Compatible with compressed air only

Product Highlights

This fitting is ideal for both static and dynamic applications and operates within a wide temperature range.

Product Information

Standard Information

• Brand: Legris
• MPN: 66PTC-5/32-4

Technical Specifications

• Max. Working Pressure: 250 psi
• Working Temperature: -40 °F to 200 °F
• Suitable Fluids: Compressed air only
• Body Material: Nylon
• Fitting Angle: Straight
• Thread Type: NPT
• Thread Size: 1/4
• Tube O.D.: 5/32 inches
• No. of Ends: 2
• End Types: Tubing & NPT
