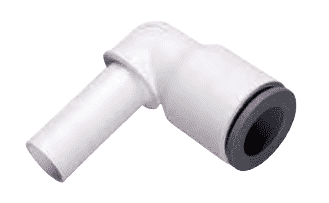

Legris 63826000WP2 LIQUIfit Push to Connect Fitting 90 Degree 3/8 Tube(f)

Product Description

The Legris 63826000WP2 is a LIQUIfit push to connect fitting designed for 3/8 inches O.D. tubing. This fitting ensures a reliable connection with its advanced features, making it a suitable choice for numerous plumbing applications.

• Designed for easy push-to-connect functionality.
• Constructed from bio-based polymer for environmental consideration.
• Suitable for use in a range of temperature applications.

Product Highlights

This fitting offers a secure connection using an EPDM D seal, which provides a larger surface area compared to standard o-rings. The engineered polymer construction allows excellent strength and chemical resistance, while the stainless steel gripping ring negates the need for locking clips.

Product Information

Standard Information

• Brand: Legris
• Part Number: 63826000WP2
• Availability: Ready to Ship

Technical Specifications

• Tube O.D.: 3/8 in
• Overall Length: 26.5 mm
• Fitting Angle: 90°
• Temperature Range [Min]: 35 °F
• Temperature Range [Max]: 200 °F
• Body Material: Bio-Based Polymer
• No. of Ends: 2
• End Size: 3/8 Tube(f)
