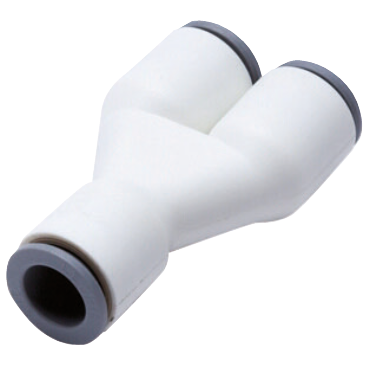

Legris 63406200WP2 LIQUIfit Push to Connect Fitting 1/2 Tube(f) Replacement MPN

Product Description

The Legris 63406200WP2 is a LIQUIfit Push to Connect Fitting designed for use with half inch O.D. tubing. This fitting is ideal for fluid connections in various applications where reliability and quick assembly are needed.

• Y fitting designed for half inch O.D. tubing
• Constructed from bio-based polymer for sustainability
• Eliminates the need for locking clips

Product Highlights

This fitting features an EPDM D seal for a firm connection, engineered polymer for enhanced strength, and a full stainless gripping ring. The release button aids in keeping the tubing secure while also allowing for easy disconnection.

Product Information

Standard Information

• Brand: Legris
• Part Number: 63406200WP2

Technical Specifications

• No. of Ends: 3
• Fitting Angle: Straight
• End Types: Tubing
• Temperature Range [Max]: 200 °F
• Body Material: Bio-Based Polymer
• End Size: 1/2 Tube(f)
• Fitting Description: Union Y
• Tube O.D.: 1/2 in
• Size Type: Fractional, Equal Ends
• Temperature Range [Min]: 35 °F
• Weight: 0.31 LB
• EAN or UPC: 820099873091
