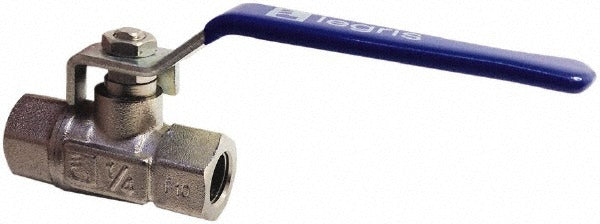

Legris 4902 20 27 Ball Valve 3/4 Inch Fbspp Lever Brass

Product Description

The LEGRIS 4902 20 27 is a standard manual ball valve designed for 3/4-inch pipe installations requiring a female BSPP port configuration on both ends. The body is constructed from nickel-plated brass, offering corrosion resistance in fluid handling systems. Actuation is handled by a lever-style handle for quick quarter-turn operation. Both the seat and seal are made from polytetrafluoroethylene (PTFE), providing chemical compatibility across a wide range of media. The valve weighs 0.71 pounds and measures 4.75 inches in length, 3.75 inches in height, and 3.75 inches in width. It is suited for plumbing, industrial fluid control, and mechanical system isolation work.

This ball valve is intended for use in systems requiring a 3/4-inch female BSPP connection on both the inlet and outlet ports. The FBSPP x FBSPP end connection is common in European-standard plumbing and industrial piping systems. The lever handle allows for fast manual shutoff, making it a practical choice for service isolation points in commercial and industrial mechanical systems. Licensed plumbers and pipefitters are the typical installers for this type of valve in new construction and retrofit applications.

Key Features

• Nickel-plated brass body for corrosion resistance in fluid service
• PTFE seat and seal material for broad chemical compatibility
• FBSPP x FBSPP end connections for European-standard piping systems
• Lever handle enables quick quarter-turn manual actuation
• Compact form factor at 4.75 inches length for tight installation spaces

Compatibility

Designed as an OEM-style replacement or new-installation ball valve for 3/4-inch female BSPP piping systems requiring manual shutoff capability.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the IPC. Isolate and depressurize the system fully before removing or installing any valve. Ensure thread engagement is appropriate for BSPP female connections and use compatible thread sealant rated for the media being controlled. Do not over-tighten threaded connections into the valve body ports.
