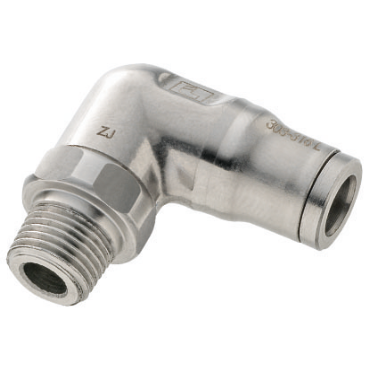

Legris 38896222 Stainless Push-to-Connect Fittings

Product Description

The Legris 38896222 is a stainless push-to-connect fitting designed for various applications. Made from stainless steel with FKM elastomer seals, this fitting is ideal for use with aggressive fluids and in harsh hygienic environments. The design facilitates easy connection and disconnection without the need for tools. It is compatible with nylon, polyurethane, polyethylene, and fluoropolymer FEP tubing, as well as stainless steel and copper tubing when grooved.

• Working temperature: -13 °F to 302 °F
• Working pressure: 435 psi
• Hygienic design minimizes retention zones

Product Highlights

This fitting provides versatile connections in diverse industrial settings.

Product Information

Standard Information

• Brand: Legris
• Part Number: 38896222

Technical Specifications

• Fitting Description: 90° Male Elbow
• End Size: 1/2 NPT(m), 1/2 Tube(f)
• Origin: Stainless Steel Push To Connect Fittings
• Thread Type: NPT
• Fitting Angle: 90°
• Material: 316 Stainless Steel
• End Types: Tubing & NPT
• Size Type: Fractional Sizes
• Thread Size: 1/2
• Body Material: 316 Stainless Steel
• No. of Ends: 2
• Tube O.D.: 1/2 in
• Weight: 0.203 LB
• EAN or UPC: 820099293578
