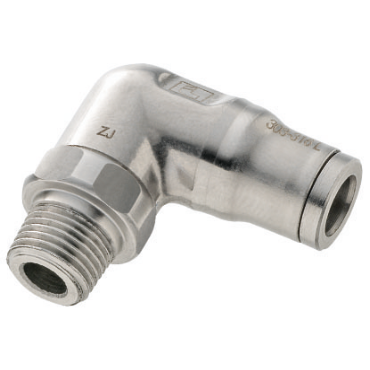

Legris 38896018 Stainless Push-to-Connect Fittings

Product Description

The Legris 38896018 is a stainless push-to-connect fitting designed for easy installation and use in various applications. This male elbow fitting is made from high-quality stainless steel with FKM elastomer seals, making it suitable for aggressive fluids, sterile environments, and more.

• Designed for easy connection and disconnection without tools
• Compatible with nylon, polyurethane, polyethylene, and fluoropolymer FEP tubing
• Applications include instrumentation, food industry, medical, and marine environments

Product Highlights

This fitting simplifies setup for various industrial and medical uses. It operates in a wide temperature range and withstands high pressure.

Product Information

Standard Information

• Brand: Legris
• Part Number: 38896018

Technical Specifications

• Material: 316 Stainless Steel
• Fitting Angle: 90 degrees
• Working Temperature: -13 degrees F to 302 degrees F
• Working Pressure: 435 psi
• End Size: 3/8 NPT(m), 3/8 Tube(f)
• No. of Ends: 2
• Thread Type: NPT
• Body Material: 316 Stainless Steel
