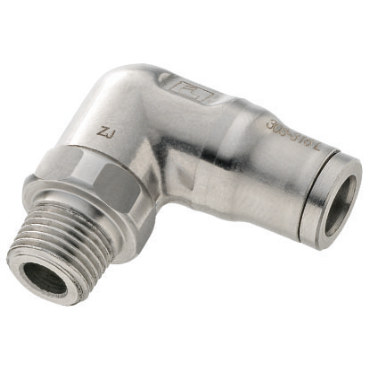

Legris 38895611 Male Elbow Stainless Push-to-Connect Fittings

Product Description

The Legris 38895611 is a stainless steel male elbow fitting designed for push-to-connect applications. This fitting is excellent for use with aggressive fluids and is suitable for harsh and sterile environments. The design allows for easy connection and disconnection without requiring any tools. It is compatible with multiple types of tubing including nylon, polyurethane, polyethylene, and fluoropolymer FEP. Applications for this fitting cover diverse fields, from instrumentation to the food industry and medical uses.

• Made from 316 stainless steel with FKM elastomer seals
• Designed for quick connect and disconnect
• Suitable for various tubing types

Product Highlights

This product features a hygienic design that minimizes retention zones and is available in multiple thread types.

Product Information

Standard Information

• Brand: Legris
• Part Number: 38895611

Technical Specifications

• Working temperature: -13 °F to 302 °F
• Working pressure: 435 psi
• Material: 316 Stainless Steel
• Body material: 316 Stainless Steel
• Fitting angle: 90°
• No. of ends: 2
• Size type: Fractional Sizes
• End size: 1/4 Tube(f), 1/8 NPT(m)
