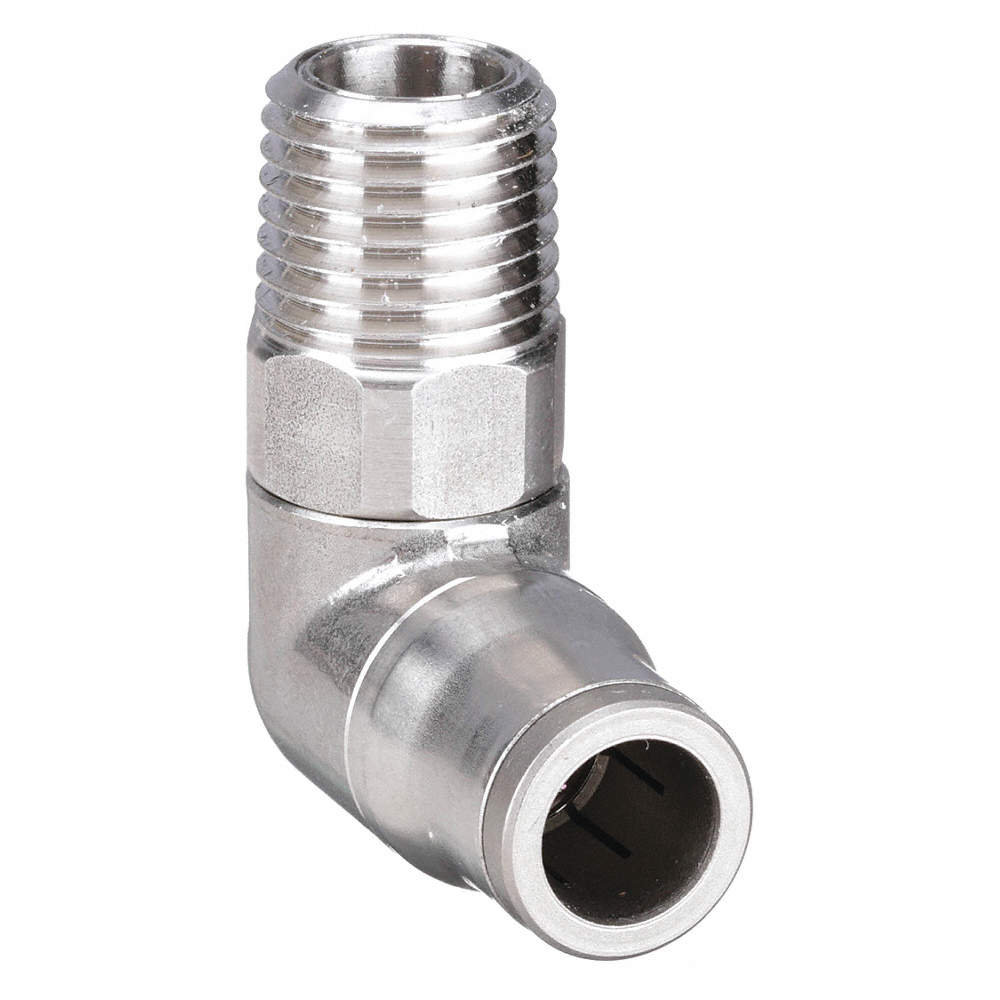

Legris 38890814 Stainless Push-to-Connect Fittings

Product Description

The Legris 38890814 is a stainless push-to-connect fitting designed for reliable connections in various applications. It features a male elbow shape that easily connects to tubing without the need for tools. The fitting is suitable for use with aggressive fluids and operates well in hygienic and sterile environments.

• Working temperature: -13 °F to 302 °F
• Working pressure: 435 psi
• FKM seal for durability

Product Highlights

This fitting offers versatility with options for NPT, BSPT, BSPP, and metric threads. Its hygienic design minimizes retention zones, attracting users in the food industry, medical, and other sensitive applications.

Product Information

Standard Information

• Brand: Legris
• Part #: 102097077

Technical Specifications

• Thread Type: NPT
• Tube O.D.: 5/16 in, 8.000 mm
• No. of Ends: 2
• Size Type: Fractional Sizes
• End Size: 1/4 NPT(m), 5/16 or 8 mm Tube(f)
• Fitting Angle: 90°
• Body Material: 316 Stainless Steel
• Weight: 0.075 LB
