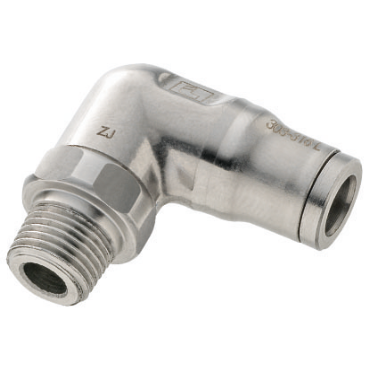

Legris 38890613 Stainless Push-to-Connect Fittings

Product Description

The Legris 38890613 is a stainless steel push-to-connect fitting designed for a variety of applications. This fitting is constructed from stainless steel and features FKM elastomer seals, making it suitable for aggressive fluids and environments that require high hygiene standards.

• Easy tool-free installation
• Compatible with nylon, polyurethane, polyethylene, and fluoropolymer FEP tubing
• Designed for use with 1/4 BSPT and 6 mm tubes

Product Highlights

This fitting offers a hygienic design that reduces retention zones and is available in different thread types, including NPT, BSPT, BSPP, and metric threads.

Product Information

Standard Information

• End Types: Tubing & BSPT
• Thread Type: BSPT

Technical Specifications

• Fitting Description: 90° Male Elbow
• End Size: 1/4 BSPT(m), 6 mm Tube(f)
• Size Type: Metric Sizes
• Fitting Angle: 90°
• Thread Size: 1/4
• Body Material: 316 Stainless Steel
• Tube O.D.: 6.000 mm
• No. of Ends: 2
