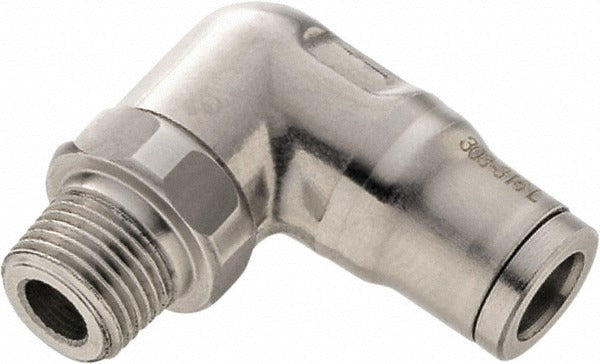

Legris 3889 12 13 Male Elbow Tube Fitting 12mm Bspt

Product Description

The LEGRIS 3889 12 13 is a push-to-connect male elbow tube fitting designed for use in pneumatic and fluid distribution systems. It features a tube-to-male BSPT configuration, allowing a 12mm outside diameter tube to connect to a 1/4 inch BSPT male thread in a 90-degree elbow arrangement. The fitting is constructed from stainless steel and is rated for a maximum working pressure of 290 psi. The push-to-connect design allows for fast, tool-free tube insertion while maintaining a secure, leak-resistant seal. Licensed trade professionals install these fittings in compressed air lines, process fluid systems, and industrial pneumatic circuits.

This fitting is suited for both light industrial and demanding process applications where corrosion resistance and reliable sealing are required. The stainless steel construction makes it appropriate for food-grade, washdown, and chemically aggressive environments. The FKM o-ring seal supports an operating temperature range of -4 degrees F to 248 degrees F, making it viable across a wide range of service conditions. It meets multiple compliance standards including RoHS, ATEX, PED, NSF H1, USDA, and FDA requirements, supporting use in food processing, pharmaceutical, and hazardous-location installations.

Key Features

• Push-to-connect design enables fast, tool-free tube installation
• Stainless steel construction provides corrosion resistance in harsh and washdown environments
• FKM o-ring seal rated from -4 degrees F to 248 degrees F
• 290 psi maximum working pressure rating
• 1/4 inch BSPT male thread for direct connection to standard BSPT ported equipment
• Certified to NSF H1, USDA, FDA (21 CFR), RoHS, ATEX, and PED standards

Compatibility

Designed for use with 12mm outside diameter tubing and 1/4 inch BSPT male-threaded ports in pneumatic and fluid handling systems. Compatible with systems requiring NSF H1, USDA, or FDA-compliant fittings.

Installation Notes

Installation is typically performed by a licensed pipefitter, pneumatic systems technician, or industrial maintenance professional. Depressurize and isolate the line completely before removing or installing any push-to-connect fitting. Verify that tube outside diameter and cut are within manufacturer tolerances for a leak-free connection. Confirm thread type as BSPT before installation, as BSPT and NPT threads are not interchangeable.
