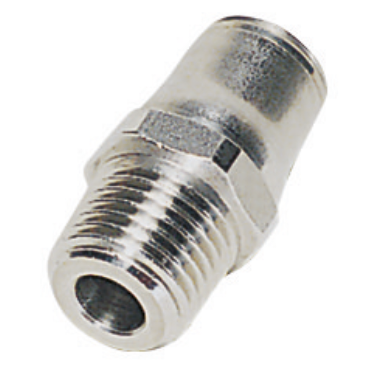

Legris 38056214 Stainless Push-to-Connect Fittings

Product Description

Legris 38056214 is a stainless push-to-connect fitting designed for efficient connection in various settings. The fitting features durable stainless steel construction with FKM elastomer seals appropriate for aggressive fluids and harsh environments. It allows easy, tool-free connection and disconnection. This fitting can accommodate nylon, polyurethane, polyethylene, and fluoropolymer tubing.

• Stud fitting type with straight fitting angle
• Compatible with 1/2 inch tube outer diameter
• Available in multiple thread types including NPT and BSP

Product Highlights

This push-to-connect fitting is ideal for applications in instrumentation, food industry, packaging, and medical uses.

Product Information

Standard Information

• Brand: Legris
• MPN: 38056214

Technical Specifications

• Working temperature: -13 °F to 302 °F
• Working pressure: 435 psi
• Material: Nickel-Plated Brass, Stainless Steel 316L
• Body material: 316 Stainless Steel
• Fitting type: Stud Fitting
• End size: 1/2 Tube(f), 1/4 NPT(m)
• Thread type: NPT
• Number of ends: 2
