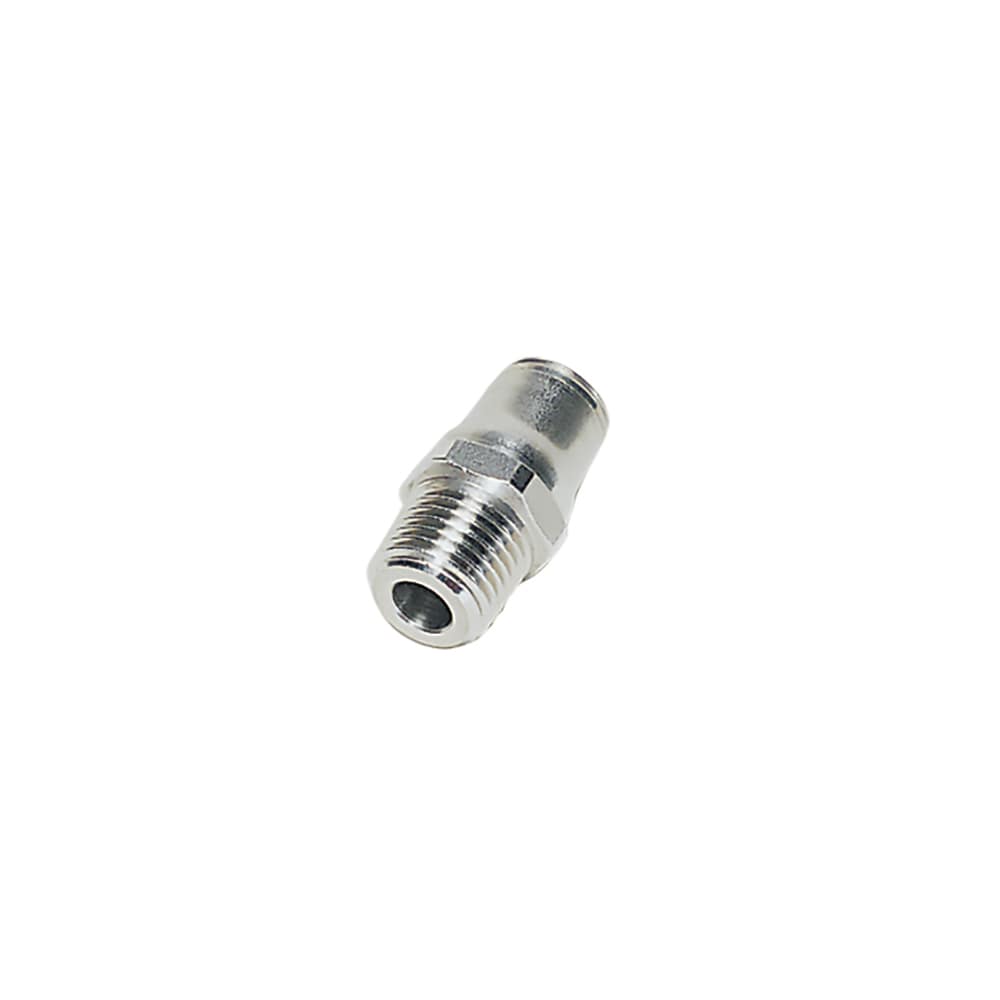

Legris 38050814 Stainless Push-to-Connect Fittings

Product Description

The Legris 38050814 is a stainless steel push-to-connect fitting designed for quick and efficient connections in various applications. This fitting is suitable for use with aggressive fluids and in hygienic environments.

• Compatible with nylon, polyurethane, polyethylene, and fluoropolymer tubing.
• No tools are required for connection or disconnection, simplifying the installation process.
• Designed for use in industries such as food, marine, and medical.

Product Highlights

This stainless steel fitting features FKM elastomer seals that provide excellent resistance to chemicals. The hygienic design minimizes retention zones, ensuring clean and safe connections.

Product Information

Standard Information

• Brand: Legris
• MPN: 38050814

Technical Specifications

• Fitting Angle: Straight
• Material: 316 Stainless Steel
• No. of Ends: 2
• End Types: Tubing & NPT
• End Size: 1/4 NPT(m), 5/16 or 8 mm Tube(f)
• Tube O.D.: 5/16 in, 8.000 mm
• Thread Size: 1/4
• Body Material: 316 Stainless Steel
• Fitting Description: Male Connector
• Thread Type: NPT
• Weight: 0.044 LB
• EAN or UPC: 820099289427
