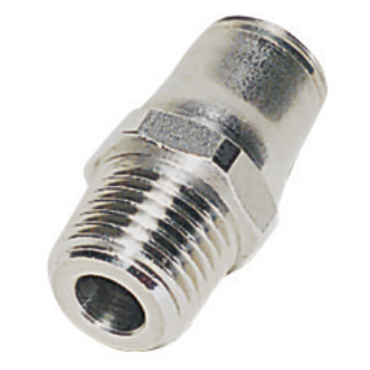

Legris 38050813 Push to Connect Fitting 290 psi Straight Male Connector

Product Description

The Legris 38050813 is a push to connect fitting designed for various piping applications. This fitting allows for quick and easy connections without the need for tools. It has an internal hex for simple assembly in tight spaces. The maximum working pressure is 290 psi, making it suitable for high-pressure systems. The operating temperature range is from -4 degrees Fahrenheit to 245 degrees Fahrenheit.

• Designed for quick connections
• Maximum working pressure: 290 psi
• Operating temperature range: -4°F to 245°F

Product Highlights

This fitting is ideal for those needing reliable and easy assembly in confined areas.

Product Information

Standard Information

• Brand: Legris
• Part Number: 38050813

Technical Specifications

• Size Type: Metric Tube x BSPT/BSPP/Metric
• End Size: 1/4 BSPT(m), 5/16 or 8 mm Tube(f)
• Fitting Angle: Straight
• Material: 316 Stainless Steel
• Thread Type: BSPT
• End Types: Tubing & BSPT
• Thread Size: 1/4
• No. of Ends: 2
• Fitting Description: Male Connector
• Tube O.D: 5/16 in, 8.000 mm
• Weight: 0.039 LB
• Origin: Stainless Steel Push To Connect Fittings
• EAN or UPC: 820099289397
