Legris 3802 10 00 Union Elbow Tube Fitting 10mm Ss

Product Description

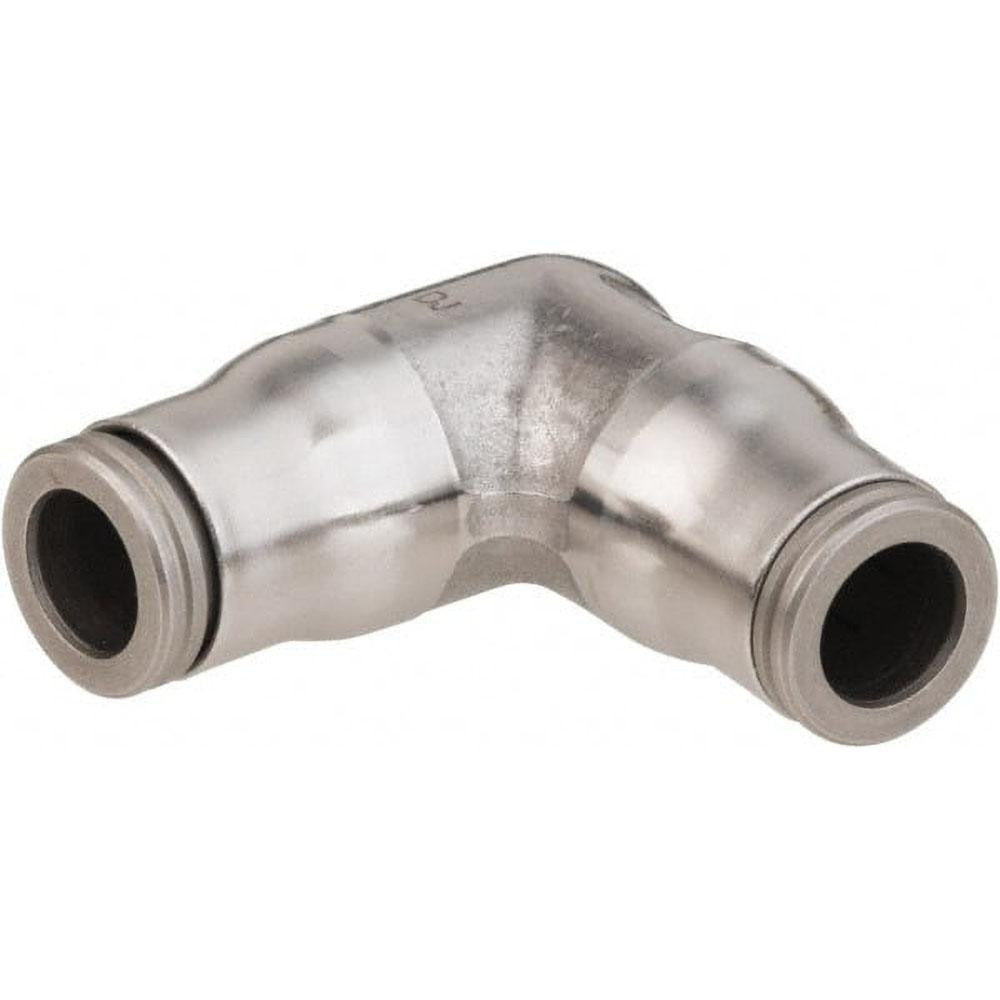

The LEGRIS 3802 10 00 is a push-to-connect union elbow tube fitting designed for tube-to-tube connections in pneumatic and fluid handling systems. Constructed from stainless steel, it handles working pressures up to 435 psi and operates across a temperature range of -4 degrees F to 248 degrees F. The elbow configuration redirects tubing runs without requiring threading or soldering, allowing fast, tool-free assembly. The FKM o-ring seal provides resistance to a wide range of process fluids and is rated UL94 V-0. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers.

This fitting is suited for industrial, food-grade, and process environments where stainless steel construction and compliance with multiple regulatory standards are required. Its 10mm outside diameter tube connection and compact overall length of 39mm make it appropriate for tight routing in pneumatic panels, process lines, and fluid distribution manifolds. The stainless steel body supports use in washdown, chemical exposure, and elevated-temperature service conditions.

Key Features

• Push-to-connect design allows tool-free tube insertion and removal
• Stainless steel body for corrosion resistance in harsh or washdown environments
• FKM o-ring seal rated for broad chemical compatibility
• Rated to 435 psi maximum working pressure
• Operating range of -4 degrees F to 248 degrees F
• Compliant with RoHS, ATEX, PED, REACH, FDA 21 CFR, USDA NSF H1, and ISO 14743

Compatibility

Designed for push-to-connect tube-to-tube pneumatic and fluid line applications using 10mm outside diameter tubing in systems requiring stainless steel fittings.

Installation Notes

Installation is performed by licensed pipefitters or pneumatic system technicians. Depressurize and isolate the line completely before disconnecting or installing any push-to-connect fitting. Ensure the tube end is cut cleanly and squarely with no burrs before insertion to achieve a proper seal. Verify tubing outside diameter and wall thickness are within the fitting specifications before committing to the connection.
