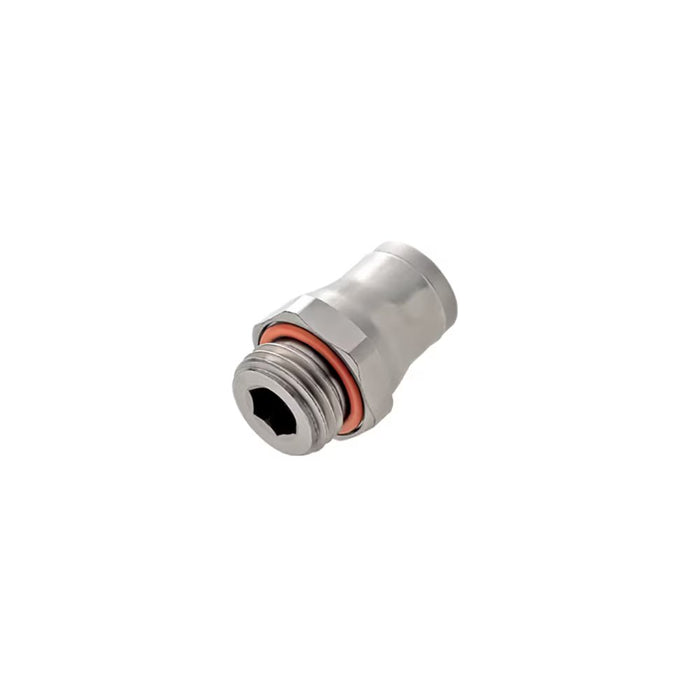

Legris 38010420 Stainless Push-to-Connect Fittings

Product Description

The Legris 38010420 Stainless Push-to-Connect Fitting offers a dependable solution for various plumbing and industrial applications. Made from stainless steel with FKM elastomer seals, this fitting is suitable for aggressive fluids and environments that demand high hygiene standards. The design does not include a thread sealant, allowing users to select the appropriate sealant for their specific needs. This fitting is easy to connect and disconnect without the need for tools, enhancing usability.

• Designed for tubing types like nylon, polyurethane, and polyethylene.
• Operating temperature range from -13 degrees Fahrenheit to 302 degrees Fahrenheit.
• Working pressure capacity of up to 435 psi.

Product Highlights

This fitting is ideal for applications in instrumentation, the printing and packaging industry, the food industry, and in marine environments.

Product Information

Standard Information

• Part Number: 102097514
• Brand: Legris

Technical Specifications

• Body Material: 316 Stainless Steel
• Fitting Angle: Straight
• End Type: Tubing & UNF
• End Size: 10-32 UNF(m), 5/32 or 4 mm Tube(f)
• No. of Ends: 2
• Thread Type: UNF
• Thread Size: #10-32
• Tube O.D.: 4.000 mm, 5/32 inches
