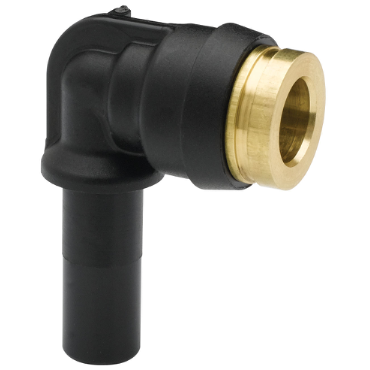

Legris 369PTCSP-4-6 PTC Composite Push-In Air Brake Fittings

Product Description

The Legris 369PTCSP-4-6 is a DOT FMVSS 106 certified push-to-connect fitting designed for quick and efficient connections in automotive and truck applications. This product enables a secure and leak-free connection simply by inserting the tubing into the fitting. To remove the tubing, press the plastic release cap. The fitting requires minimal force for both connections and disconnections, eliminating the need for any tools.

• Constructed of glass-reinforced nylon
• Nickel-plated brass threaded components
• Low temperature Buna-Nitrile elastomer seals

Product Highlights

This fitting is suitable for use with fractional inch tubing in a variety of temperatures and both static and dynamic conditions.

Product Information

Standard Information

• Brand: Legris
• MPN: 369PTCSP-4-6

Technical Specifications

• Max. Working Pressure: 250 psi
• Working Temperature: -40 °F to 200 °F
• Suitable Fluids: Compressed air only
• Fitting Description: 90° Plug-In Elbow
• No. of Ends: 2
• Material: Nylon
• Body Material: Nylon
• Fitting Angle: 90°
• Tube O.D. 1: 1/4 in
• Tube O.D. 2: 3/8 in
• Size Type: Fractional Sizes
• Weight: 0.016 LB
