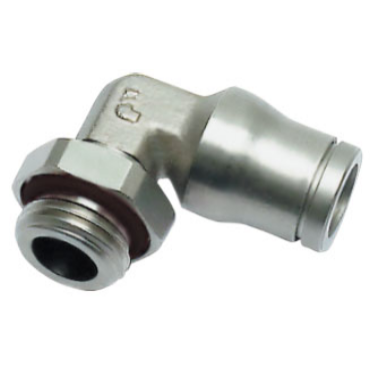

Legris 36990813 Nickel-Plated Brass Push-to-Connect Fittings for Chemical, Automation and Food Processing

Product Description

Legris presents the 36990813, a nickel-plated brass push-to-connect fitting designed for chemical automation and food processing applications. This fitting is constructed from high phosphorous material, ensuring compliance with FDA standards and resistance to various chemicals.

• Compatible with liquids and gases
• Temperature range: -13 degrees Fahrenheit to 302 degrees Fahrenheit
• Working pressure of 435 psi

Product Highlights

This fitting provides reliable connections and is suitable for a range of tubing types including nylon and polyethylene. It is ideal for use in food processing, medical applications, and washdown scenarios.

Product Information

Standard Information

• Brand: Legris
• MPN: 36990813

Technical Specifications

• Material: Nickel-Plated Brass
• Fitting Angle: 90 degrees
• Max. Working Pressure: 435 psi
• Working Temperature: -13 degrees Fahrenheit to 302 degrees Fahrenheit
• End Size: 1/4 BSPP male, 8 mm tube female
• Overall Length: 23.500 mm
• Height: 21.500 mm
• Tube O.D.: 8.000 mm
• Thread Type: BSPP
• Body Material: Nickel-Plated Brass
• No. of Ends: 2
• End Types: Tubing & BSPP
• Size Type: Metric Sizes
• EAN or UPC: 820099287331
