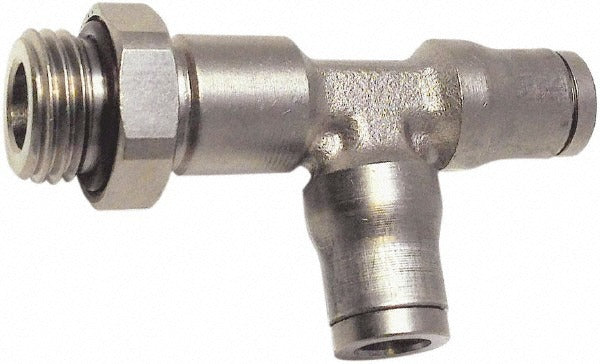

Legris 3693 04 10 Push-to-connect Male Bspp Fitting

Product Description

The LEGRIS 3693 04 10 is a push-to-connect tube fitting with a male BSPP thread configuration, designed for fast, tool-free tube connections in pneumatic and fluid systems. Built from nickel-plated brass, it handles both liquid and gas service up to 435 psi working pressure. The fitting accepts a 4 mm outside diameter tube and operates across a wide temperature range, from -4 degrees F to 302 degrees F. It is installed by plumbers, pipefitters, and pneumatic system technicians working on compressed air lines, hydraulic circuits, and general fluid conveyance applications.

This fitting is suited for light industrial, commercial, and OEM fluid handling systems where a reliable push-to-connect interface is needed at a male BSPP threaded port. The 1/8 inch BSPP thread makes it compatible with metric and British-standard ported components commonly found in European-spec equipment. Its FKM O-ring seals support compatibility with a broad range of liquids and gases, making it a practical choice in mixed-fluid environments.

Key Features

• Push-to-connect design enables fast, tool-free tube insertion and removal
• Nickel-plated brass construction provides corrosion resistance in liquid and gas service
• Rated to 435 psi maximum working pressure
• Wide service temperature range: -4 degrees F to 302 degrees F
• FKM O-ring seals compatible with a broad range of liquids and gases
• Accepts 4 mm outside diameter tubing

Compatibility

Designed as an OEM-style replacement or direct-install fitting for pneumatic and fluid systems using 4 mm outside diameter tubing with 1/8 inch BSPP male-ported connections.

Installation Notes

Installation is performed by qualified plumbers, pipefitters, or pneumatic system technicians. Depressurize and isolate the line completely before removing or installing any fitting. Verify that the mating port thread is BSPP and not NPT, as these thread forms are not interchangeable despite similar sizing. Confirm tube outside diameter is 4 mm before insertion to ensure a proper seal.
