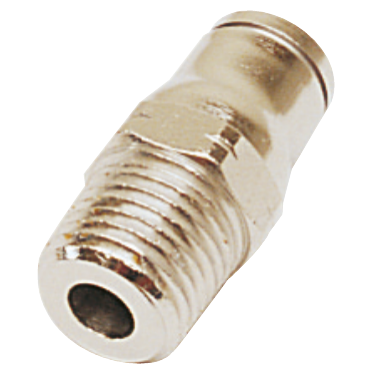

Legris 36756022 Nickel-Plated Brass Push-to-Connect Fittings for Chemical Automation and Food Processing

Product Description

The Legris 36756022 is a nickel-plated brass push-to-connect fitting designed for chemical automation and food processing applications. This fitting is built from high phosphorous material that is FDA compliant and resistant to chemicals. It features a robust construction with a nickel-plated collet and body, suitable for use with a variety of liquids and gases. The maximum working pressure for this fitting is 435 psi and it can handle temperatures from minus thirteen degrees Fahrenheit to three hundred two degrees Fahrenheit.

• Made from FDA compliant materials
• Compatible with multiple types of tubing
• High-pressure and temperature resistance

Product Highlights

This fitting is ideal for food processing, medical, washdown, and packaging equipment.

Product Information

Standard Information

• Brand: Legris
• Part Number: 36756022

Technical Specifications

• Thread Type: NPT
• No. of Ends: 2
• End Size: 3/8 Tube(f)
• Tube O.D.: 3/8 inches
• Thread Size: 1/2
• Size Type: Fractional Sizes
• Fitting Description: Male Connector
• Material: Nickel-Plated Brass
• Body Material: Nickel-Plated Brass
• Fitting Angle: Straight
• End Types: Tubing & NPT
• Origin: FDA Approved Nickel Plated Brass Fittings
• Weight: 0.126 LB
• EAN or UPC: 820099285467
