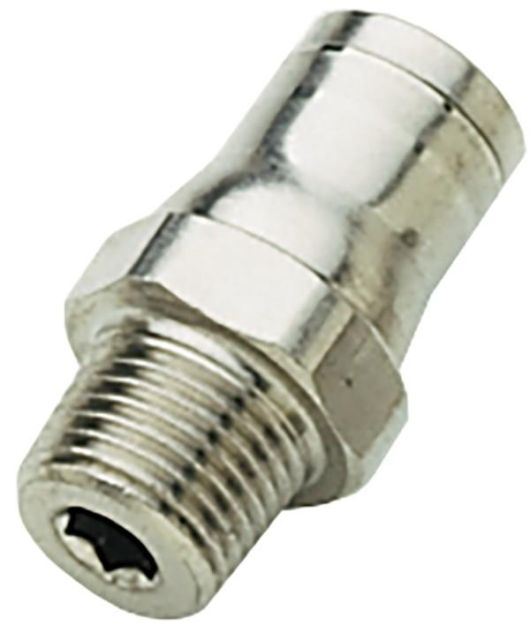

Legris 36755614 Nickel-Plated Brass Push-to-Connect Fittings for Chemical, Automation and Food Processing

Product Description

The Legris 36755614 is a nickel-plated brass male connector fitting designed for use in chemical automation and food processing applications. Constructed from high phosphorous nickel-plated brass, this fitting is FDA compliant and resistant to chemicals. It can handle liquids and gaseous fluids at temperatures up to three hundred two degrees Fahrenheit. It is compatible with various tubing types including nylon, polypropylene, polyethylene, and fluoropolymer FEP.

• Max. working pressure: 435 psi
• Working temperature: -13 degrees Fahrenheit to 302 degrees Fahrenheit
• FKM seal

Product Highlights

This fitting is ideal for food processing, medical, washdown, and packaging equipment applications.

Product Information

Standard Information

• Fitting Description: Male Connector
• Fitting Angle: Straight

Technical Specifications

• Size Type: Fractional Sizes
• End Types: Tubing & NPT
• Body Material: Nickel-Plated Brass
• No. of Ends: 2
• Origin: FDA Approved Nickel Plated Brass Fittings
• Thread Size: 1/4
• Tube O.D.: 1/4 in
• End Size: 1/4 Tube(f)
• Material: Nickel-Plated Brass
• Thread Type: NPT
• Weight: 0.037 LB
• EAN or UPC: 820099285221
