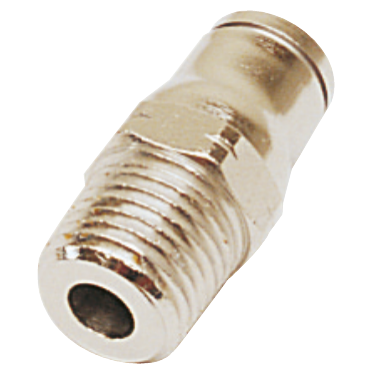

Legris 36750613 Nickel-Plated Brass Push-to-Connect Fittings for Chemical, Automation and Food Processing

Product Description

The Legris 36750613 is a nickel-plated brass push-to-connect fitting. It is suitable for chemical automation and food processing applications. This fitting is made from high phosphorous materials and is FDA compliant.

• Max. working pressure: 435 psi
• Working temperature: -13 °F to 302 °F
• Compatible with various tubing materials

Product Highlights

Designed for a variety of industrial applications including food processing, medical equipment, and packaging. It features a straight fitting angle and is ideal for use with nylon, polypropylene, and fluoropolymer tubing.

Product Information

Standard Information

• Brand: Legris
• MPN: 36750613

Technical Specifications

• Thread Size: 1/4
• Height: 17.000 mm
• Size Type: Metric Tube x BSPT Threads
• Origin: FDA Approved Nickel Plated Brass Fittings
• Thread Type: BSPT
• Hex Size 1: 14 mm
• Hex Size 2: 4 mm
• Body Material: Nickel-Plated Brass
• Fitting Type: Stud Fitting
• No. of Ends: 2
• Fitting Description: Male Connector
• Tube O.D.: 6.000 mm
• Fitting Angle: Straight
• Weight: 0.042 LB
• EAN or UPC: 820099284552
