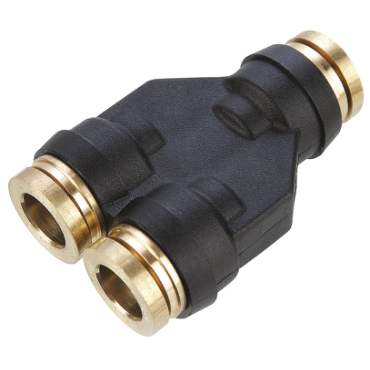

Legris 362PTC-6 PTC Composite Push-In Air Brake Fittings

Product Description

Legris 362PTC-6 is a PTC Composite Push-In Air Brake Fitting designed for reliable connections in automotive and truck applications. This fitting allows for quick assembly by simply pushing the tubing into the fitting for a tight, leak-free seal. To disconnect, users press the plastic release cap. The fitting provides an efficient solution for connecting flexible tubing without tools.

• DOT FMVSS 106 compliant for automotive use
• Constructed from glass-reinforced nylon and nickel-plated brass
• Removable without tools for easy maintenance

Product Highlights

Ideal for fractional inch tubing, the fitting operates efficiently across a wide temperature range.

Product Information

Standard Information

• Type: Push-to-Connect Fitting
• Brand: Legris

Technical Specifications

• Max. Working Pressure: 250 psi
• Working Temperature: -40 °F to 200 °F
• Suitable Fluids: Compressed air only
• Body Material: Nylon
• End Types: Tubing
• Tube O.D.: 3/8 in
• No. of Ends: 3
• Fitting Angle: Straight
• Fitting Description: Union Y
• Weight: 0.081 LB
