Legris 3629 08 10 Extended Male Elbow Fitting 8mm Bspt

Product Description

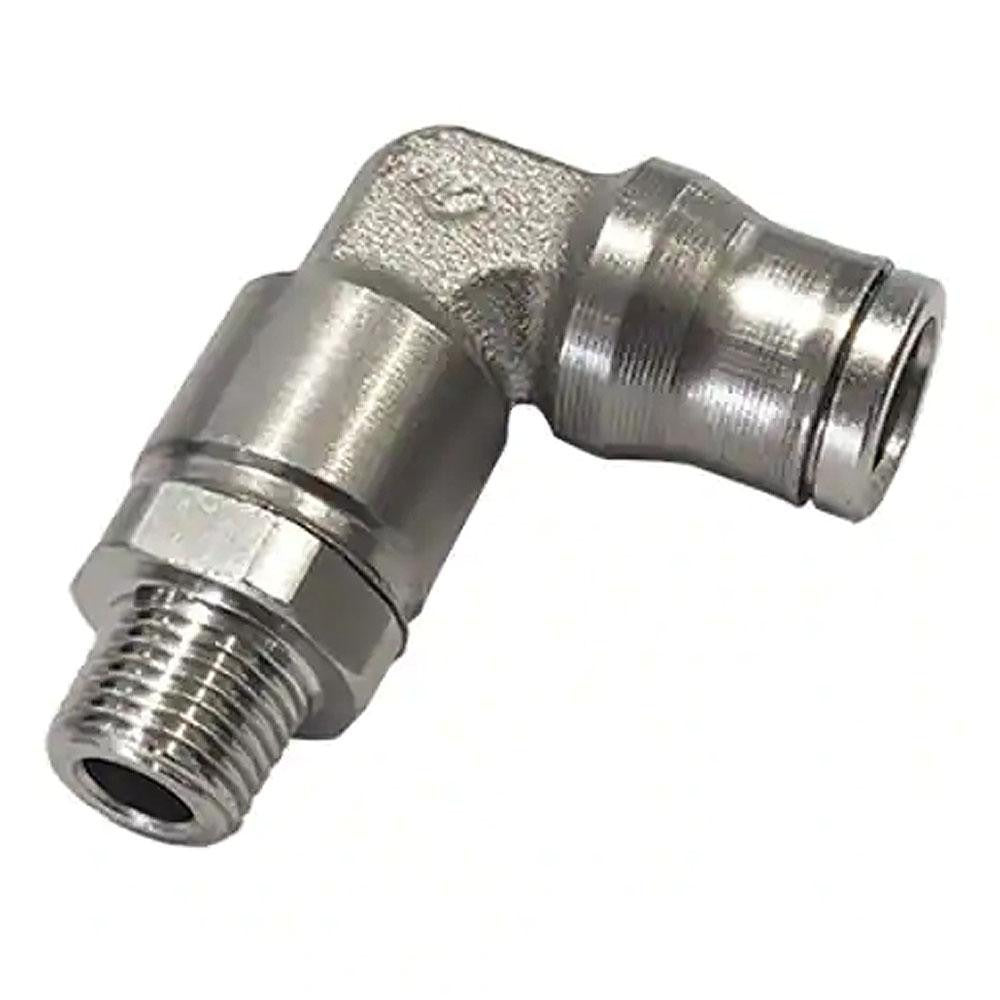

The LEGRIS 3629 08 10 is a push-to-connect extended male elbow tube fitting designed for fast, tool-free tube connections in pneumatic and fluid systems. Constructed from nickel-plated brass with an FKM O-ring, it handles a maximum working pressure of 435 psi across a temperature range of -4 degrees F to 302 degrees F. The connection configuration is tube by male by tube by male BSPT, making it suited for right-angle routing in tight installations. Plumbers, pipefitters, and pneumatic system technicians install this fitting in both gas and liquid service applications.

This fitting is intended for use in industrial and commercial pneumatic or fluid distribution systems where a compact, angled connection is needed between tubing and a male BSPT threaded port. It accepts 8mm outside diameter tubing and threads into 1/8 inch BSPT ports. It is rated for use with both liquid and gas media, making it applicable across a range of process, compressed air, and low-pressure fluid line scenarios where a reliable push-to-connect interface is required.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and removal
• Extended male elbow configuration provides right-angle routing with thread-out clearance
• Nickel-plated brass body resists corrosion in demanding service environments
• FKM O-ring sealing material compatible with a wide range of liquids and gases
• Rated to 435 psi maximum working pressure
• Wide temperature range: -4 degrees F to 302 degrees F
• Compliant with RoHS, ATEX, PED, REACH, ISO 14743, and FDA 21CFR standards

Compatibility

Designed for use with 8mm outside diameter tubing and 1/8 inch BSPT male threaded ports in liquid and gas service applications.

Installation Notes

Installation should be performed by a qualified pipefitter or pneumatic systems technician familiar with push-to-connect fittings and BSPT threaded connections. Shut off and depressurize the system completely before removing or installing fittings. Ensure the tube end is cut cleanly and squarely and is free of burrs before inserting into the fitting body. Verify thread type compatibility before engaging the BSPT male thread, as BSPT is a tapered parallel-sealing thread and is not interchangeable with NPT.
