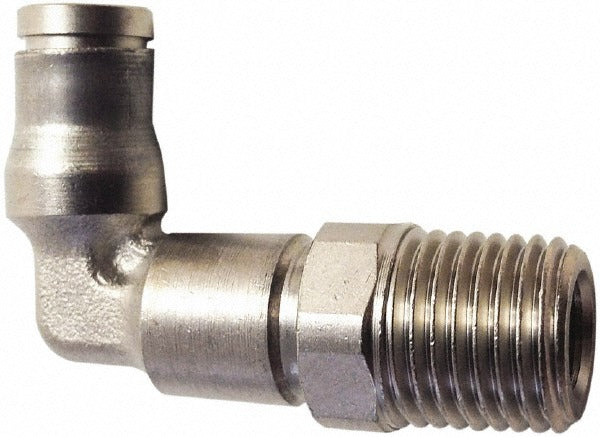

Legris 3629 06 13 Push-to-connect Male Bspt Fitting

Product Description

The LEGRIS 3629 06 13 is a push-to-connect tube-to-male BSPT tube fitting designed for fast, tool-free tube connections in pneumatic and fluid systems. Constructed from nickel-plated brass, it handles a maximum working pressure of 435 psi and an operating temperature range of -4 degrees F to 302 degrees F. The fitting accepts a 6 mm outside diameter tube on each push-to-connect port and terminates with a male BSPT thread for inline or branch connections. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers for this type of hardware.

This fitting is suited for both liquid and gas service in light industrial, commercial, and OEM plumbing or pneumatic line assemblies. The BSPT thread form is common in fluid power and instrumentation applications where British Standard pipe connections are specified. The push-to-connect design allows for rapid inline installation without soldering or compression tools, making it practical for maintenance work and new installations alike.

Key Features

• Push-to-connect ports on both tube ends allow tool-free tube insertion and release
• Male BSPT thread for compatibility with British Standard pipe fittings
• Nickel-plated brass construction resists corrosion in wet and humid environments
• Rated to 435 psi maximum working pressure
• FKM O-ring material provides a reliable seal for both liquid and gas service
• Wide temperature range: -4 degrees F to 302 degrees F

Compatibility

Designed for use with 6 mm outside diameter tubing in liquid and gas service applications requiring a male BSPT threaded connection.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or pneumatic system technician. Depressurize and isolate the line completely before removing or installing any fitting. Confirm tube cut ends are clean, square, and free of burrs before inserting into the push-to-connect ports to ensure a proper seal. Verify BSPT thread engagement meets applicable system and code requirements before returning the line to service.
