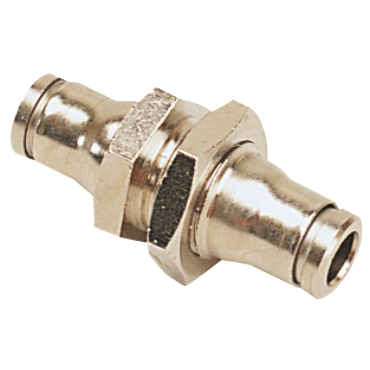

Legris 36166000 Nickel-Plated Brass Push-to-Connect Fittings for Chemical, Automation and Food Processing

Product Description

The Legris 36166000 is a nickel-plated brass push-to-connect fitting. This fitting is designed for use in chemical automation and food processing applications. It features a bulkhead connector suitable for three eighths inch outer diameter tubing. The fitting is made from high phosphorous, FDA compliant materials providing resistance to chemicals and temperature variations.

• Suitable for various tubing materials including nylon, polypropylene, and fluoropolymer FEP.
• Maximum working pressure: 435 psi.
• Working temperature range: -4 °F to 302 °F.

Product Highlights

This fitting offers reliable connections in demanding environments such as food processing and medical applications. Its versatile design accommodates different types of tubing.

Product Information

Standard Information

• Brand: Legris
• Part Number: 36166000

Technical Specifications

• Number of Ends: 2
• Tube Outer Diameter: 3/8 in
• Fitting Angle: Straight
• Body Material: Nickel-Plated Brass
• End Types: Tubing
• Origin: FDA Approved Nickel Plated Brass Fittings
• End Size: 3/8 Tube (female)
• Size Type: Fractional Sizes
• Weight: 0.138 lb
• EAN or UPC: 820099280899
