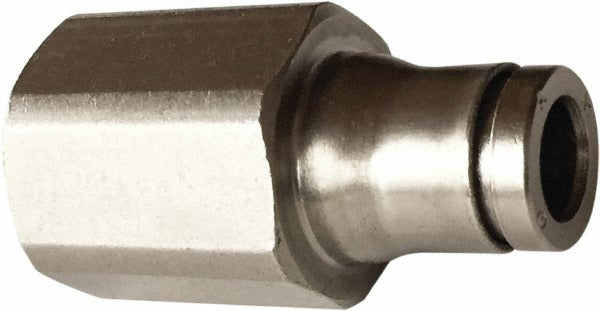

Legris 3615 60 18 Push-to-connect Female Connector

Product Description

The LEGRIS 3615 60 18 is a push-to-connect tube-to-female NPT fitting designed for fast, tool-free connections in pneumatic and fluid distribution systems. Constructed from nickel-plated brass, it accepts 3/8 inch OD tubing on each tube port and connects to a 3/8 inch female NPT thread. The fitting is rated to 435 psi maximum working pressure and handles temperatures from -4 degrees F to 302 degrees F. The FKM O-ring provides a reliable seal across a wide range of media. Licensed plumbers, pipefitters, and industrial maintenance technicians install this fitting in compressed air, water, and food-grade fluid lines where quick-disconnect convenience is required.

This fitting is suited for residential, commercial, and light industrial pneumatic and fluid distribution applications. It is approved for use with compressed air, grease, water, and food-grade media, conforming to FDA standards. Its push-to-connect design makes it appropriate for panel installations, manifold assemblies, and inline connections where repeated access or frequent reconnection is expected. The NPT thread end mates directly to standard female NPT ports on valves, regulators, and fittings throughout a distribution system.

Key Features

• Push-to-connect design allows tool-free tube insertion for fast assembly and servicing
• Nickel-plated brass body resists corrosion and suits food-grade and compressed air environments
• Rated to 435 psi maximum working pressure for robust pneumatic and fluid service
• FKM O-ring seal compatible with a broad range of media including grease and water
• Conforms to FDA standards for use in food and beverage applications
• Vacuum-rated to 28 in-Hg, suitable for suction-side applications

Compatibility

Designed for use with compressed air, grease, water, and food-grade fluid systems accepting 3/8 inch OD tubing and 3/8 inch female NPT connections. Conforms to FDA standards for food-contact applications.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or qualified industrial maintenance technicians. Depressurize and isolate the line before disconnecting or installing any fitting. Ensure the tube end is cut cleanly and squarely with no burrs before inserting into the push-to-connect port to maintain a leak-free seal. Apply thread sealant to the NPT end per site requirements and applicable plumbing or pneumatic codes.
