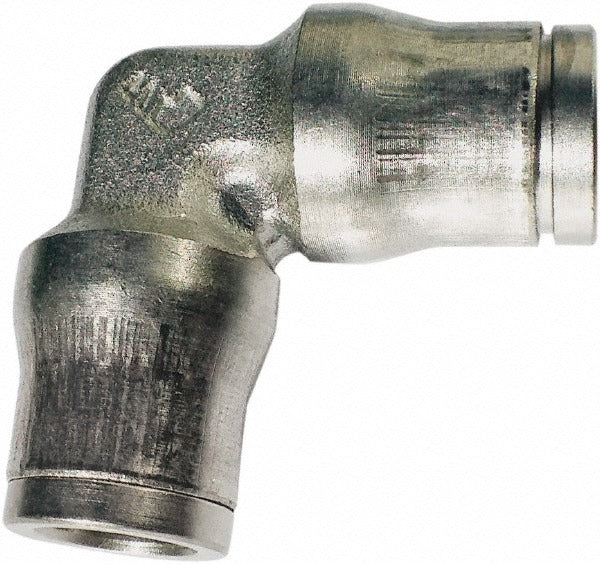

Legris 3602 12 00 Union Elbow Fitting 12mm 435 Psi

Product Description

The LEGRIS 3602 12 00 is a push-to-connect union elbow tube fitting manufactured from nickel-plated brass. It creates a 90-degree connection between two tubes with a 12mm outside diameter, using a tool-free push-in mechanism that locks tubing securely without threaded fittings or compression nuts. The fitting handles a maximum working pressure of 435 psi and is rated for service from -4 degrees F to 302 degrees F, making it suitable for both liquid and gas line applications. The FKM o-ring provides reliable sealing across a wide temperature range. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers.

This fitting is designed for use in pneumatic and fluid conveyance systems where a compact, right-angle tube-to-tube connection is required. Its push-to-connect design reduces installation time compared to traditional compression or threaded fittings, which makes it a practical choice in control panels, equipment enclosures, and industrial process lines where access is limited. It is compatible with both liquid and gas media. Compliance with standards including RoHS, ATEX, PED, ISO 14743, REACH, UL94 V-0, and FDA 21CFR makes this fitting suitable for regulated environments in food processing, pharmaceutical, and hazardous-area installations.

Key Features

• Tool-free push-to-connect installation for 12mm OD tubing
• Nickel-plated brass construction for corrosion resistance
• 435 psi maximum working pressure
• FKM o-ring sealing for compatibility with a wide range of fluids and gases
• Wide temperature range: -4 degrees F to 302 degrees F
• Multi-standard certified: RoHS, ATEX, PED, ISO 14743, REACH, UL94 V-0, FDA 21CFR

Compatibility

Designed for use with 12mm outside diameter tubing in pneumatic and fluid conveyance systems handling liquid or gas media. Suitable for regulated applications requiring RoHS, ATEX, PED, ISO 14743, REACH, UL94 V-0, and FDA 21CFR compliance.

Installation Notes

Installation should be performed by a licensed plumber or qualified pipefitter following applicable fluid system and pneumatic codes. Depressurize and isolate the system completely before disconnecting or installing any push-to-connect fitting. Ensure tubing is cut cleanly and squarely, and that the outside diameter is free of burrs or scratches before insertion, as surface defects can compromise the o-ring seal. Verify tubing is fully seated to the stop depth before returning the system to service.
