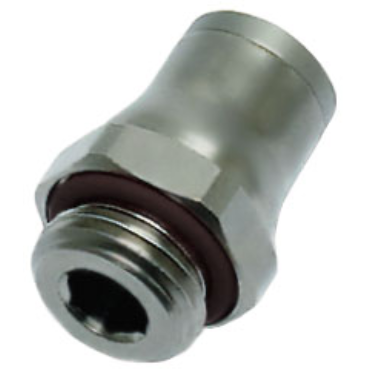

Legris 36010813 Nickel-Plated Brass Push-to-Connect Fittings for Chemical, Automation and Food Processing

Product Description

The Legris 36010813 is a nickel-plated brass push-to-connect fitting designed for various applications such as chemical automation and food processing. Made of high phosphorous material, this fitting ensures compliance with FDA standards and offers durability against chemicals. It connects easily with 8 millimeter outer diameter tubing.

• Max working pressure reaches 435 psi.
• Operates in a temperature range from -13 degrees Fahrenheit to 302 degrees Fahrenheit.
• Available in different thread configurations including NPT, BSPT, BSPP, and metric threads.

Product Highlights

This fitting is suitable for a range of tubing types like nylon, polypropylene, and fluoropolymer FEP.

Product Information

Standard Information

• Brand: Legris
• MPN: 36010813

Technical Specifications

• Hex Size 1: 16 mm
• Fitting Description: Male Connector
• Thread Size: 1/4
• Origin: FDA Approved Nickel Plated Brass Fittings
• Fitting Type: Stud Fitting
• Body Material: Nickel-Plated Brass
• Tube O.D.: 8.000 mm
• No. of Ends: 2
• Hex Size 2: 6 mm
• Size Type: Metric Tube x BSPP Threads
• Fitting Angle: Straight
• Height: 18.000 mm
• Thread Type: BSPP
• Weight: 0.031 LB
• EAN or UPC: 820099275093
