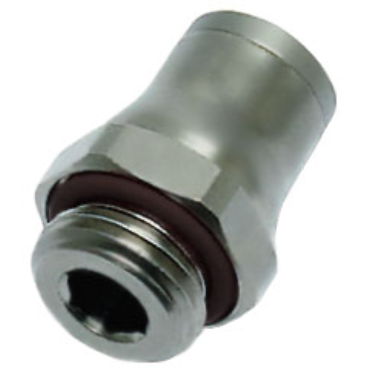

Legris 36010419 Nickel-Plated Brass Push-to-Connect Fittings for Chemical, Automation and Food Processing

Product Description

The Legris 36010419 is a nickel-plated brass push-to-connect fitting designed for use in chemical automation and food processing applications. This fitting is made from high phosphorous, FDA-compliant materials that ensure compatibility with various fluids and gases. It is built to handle maximum working pressures of four hundred thirty-five psi and can work in temperature ranges from negative thirteen degrees Fahrenheit to three hundred two degrees Fahrenheit.

• Stud fitting type
• Straight fitting angle
• 4 mm tube outer diameter

Product Highlights

Durable and reliable, these fittings are suitable for food processing, medical, washdown, and packaging equipment.

Product Information

Standard Information

• Brand: Legris
• MPN: 36010419

Technical Specifications

• Material: Nickel-Plated Brass
• Fitting Type: Stud Fitting
• Fitting Angle: Straight
• Tube O.D.: 4.000 mm
• Thread Size: M5x0.8
• Hex Size 1: 10 mm
• Hex Size 2: 2.5 mm
• Height: 15.500 mm
• No. of Ends: 2
• Body Material: Nickel-Plated Brass
• Weight: 0.013 LB
• EAN or UPC: 820099274348
