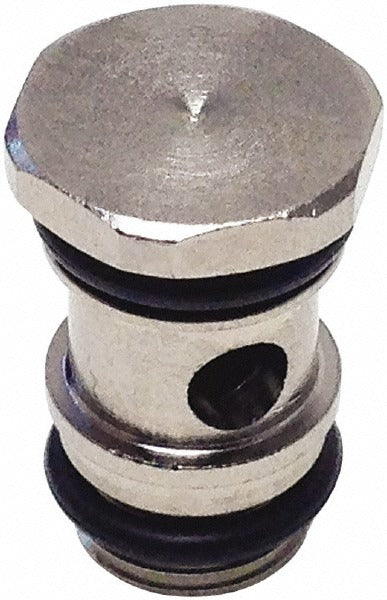

Legris 3527 00 19 Single Banjo Bolt Fitting M5x0.8

Product Description

The LEGRIS 3527 00 19 is a single banjo bolt push-to-connect tube fitting designed for tube-to-metric-thread connections in pneumatic and fluid transfer systems. Constructed from nickel-plated brass, this fitting handles a maximum working pressure of 290 psi and operates across a temperature range of -4 degrees F to 175 degrees F. The M5x0.8 metric thread and push-to-connect tube interface allow fast, tool-free tube insertion without sacrificing seal integrity. The nitrile O-ring provides reliable sealing in a wide range of media. Licensed HVAC technicians, plumbers, and fluid system mechanics install this type of fitting in pneumatic control lines, compressed air circuits, and light hydraulic assemblies.

This fitting is suited for residential and light commercial pneumatic or fluid line applications where a compact banjo-style connection is required at an M5x0.8 threaded port. The push-to-connect end simplifies installation in tight spaces and reduces assembly time compared to traditional compression fittings. It is commonly found in instrumentation, control tubing, and precision fluid circuits where reliable sealing and vibration resistance are important. The nickel-plated brass construction resists corrosion in typical indoor service environments.

Key Features

• Push-to-connect tube interface for fast, tool-free tube insertion
• Single banjo bolt design enables inline branching at a threaded port
• M5x0.8 metric thread for compatibility with standard metric-threaded ports
• Nickel-plated brass body for corrosion resistance and durability
• Nitrile O-ring provides reliable sealing across a broad media range
• Rated to 290 psi maximum working pressure

Compatibility

Designed as a direct-fit push-to-connect single banjo bolt fitting for pneumatic and fluid systems with M5x0.8 metric-threaded ports.

Installation Notes

Installation should be performed by a qualified technician familiar with pneumatic or fluid line service. Depressurize and isolate the system fully before removing or installing any fittings. Confirm thread engagement is complete and the O-ring is properly seated before returning the system to service. Do not exceed the rated working pressure or operating temperature range for this fitting.
