Legris 33040804 Push to Connect Fitting 290 psi (8mm Tube) Replacement MPN 3304 08 04

Product Description

Legris 33040804 is a push-to-connect fitting designed for seamless connection of semi-rigid plastic tubing in pneumatic systems. This fitting, made of glass-filled nylon, features nickel-plated brass threaded components and buna-nitrile elastomer seals. Users can achieve a secure and leak-free connection by simply pushing the tubing into the stainless steel gripping ring. Each fitting includes a plastic release button for easy disconnection without tools. These fittings are reusable and compatible with various types of tubing including nylon, polyurethane, polyethylene, and Teflon.

• Max working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

Legris push-to-connect fittings streamline installations and repairs by minimizing labor requirements.

Product Information

Standard Information

• Brand: Legris
• Part #: 102096753

Technical Specifications

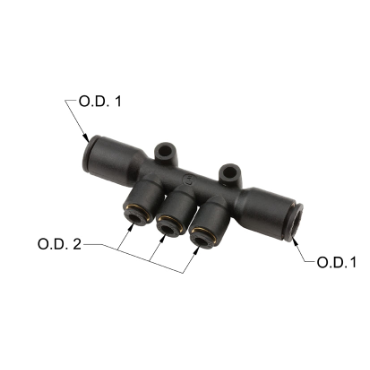

• End Types: Tubing
• End Size: 5/16 or 8 mm Tube (f)
• Tube O.D. 1: 5/16 in, 8 mm
• Tube O.D. 2: 5/32 in, 4 mm
• Material: Nylon Body
• Fitting Description: Multiple Tee w/ Mounting Holes
• Fitting Angle: 90°
• Overall Length: 74 mm
• No. of Ends: 5
• Size Type: Metric Sizes
• Weight: 0.068 LB
• EAN or UPC: 820099265360
