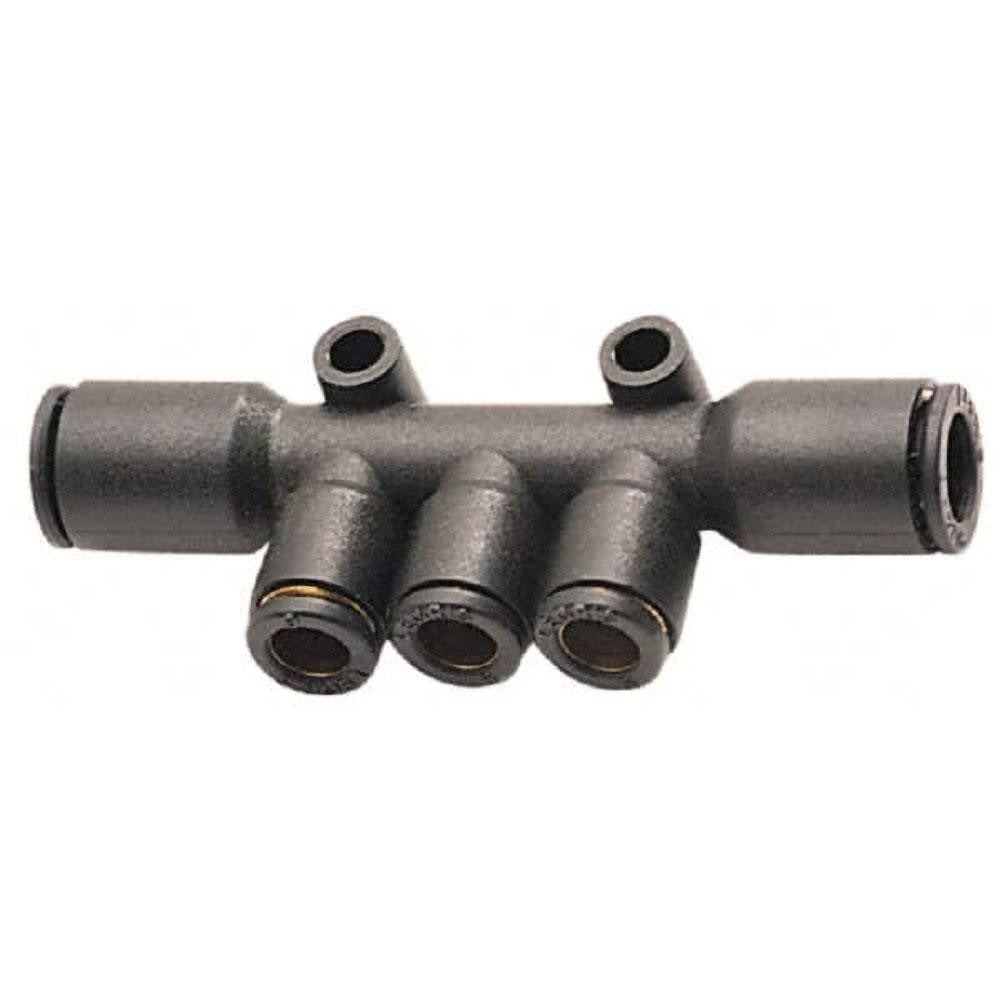

Legris 3304 10 06 Multiple Tee Push-to-connect Fitting

Product Description

The LEGRIS 3304 10 06 is a multiple-tee push-to-connect tube fitting designed for pneumatic and fluid-handling systems that require a compact, multi-port branch connection. Constructed from nylon with a black finish, this fitting accepts tubing with a 10mm outside diameter on the main run and 6mm outside diameter on the branch port. It is rated to 290 psi and includes integrated mounting holes, allowing it to be secured directly to a panel or surface without separate hardware. Licensed plumbers, HVAC technicians, and industrial maintenance technicians install this type of fitting in compressed-air and low-pressure fluid distribution lines.

This fitting is suited for light industrial, HVAC controls, and pneumatic automation applications where multiple tube lines need to split or converge at a single point. The push-to-connect design eliminates the need for tools during tube insertion, making it practical for panel-mount installations, manifold assemblies, and retrofit service work. The mounting holes allow permanent or semi-permanent fixture to a control panel, bracket, or enclosure surface. It is appropriate for both residential and light commercial equipment service scenarios involving small-bore pneumatic tubing runs.

Key Features

• Push-to-connect design allows tool-free tube insertion and removal
• Accepts 10mm OD main-run tubing and 6mm OD branch tubing
• 290 psi pressure rating for pneumatic and low-pressure fluid service
• Nylon construction provides chemical resistance and light weight
• Integrated mounting holes allow panel or surface mounting without additional hardware
• Multiple-tee configuration supports multi-branch tube distribution in a compact footprint

Compatibility

Designed as an OEM-style push-to-connect replacement or new-installation fitting for pneumatic and fluid-handling systems using 10mm OD and 6mm OD flexible tubing.

Installation Notes

Installation is typically performed by qualified pneumatic system technicians, HVAC controls technicians, or industrial maintenance personnel. Depressurize and lock out the pneumatic or fluid circuit completely before removing or inserting any push-to-connect fitting. Ensure tubing ends are cut cleanly and squarely with no burrs before insertion to maintain a proper seal. Verify tubing outside diameter matches the fitting port size before assembly, as mismatched tubing will not seal correctly.
