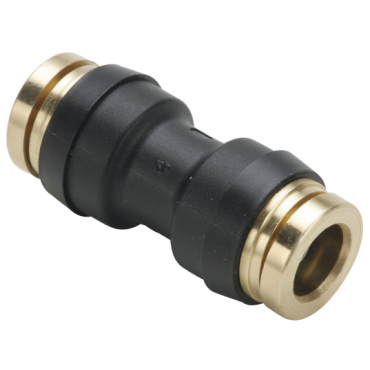

Legris 32PTC-6 PTC Composite Push-In Air Brake Fittings

Product Description

The Legris 32PTC-6 is a push-to-connect fitting specifically designed for air brake systems in the automotive and truck industries. This fitting simplifies connections to flexible tubing through an easy push-in mechanism. Removal is also straightforward, using a plastic release cap. The fitting ensures a tight, leak-free connection without the need for tools.

• DOT FMVSS 106 compliant
• Supports a temperature range from -40 °F to 200 °F
• Suitable for fractional inch tubing connections

Product Highlights

This fitting is engineered for efficient fluid flow and ease of use, providing immediate seals and optimal performance.

Product Information

Standard Information

• Brand: Legris
• Part Number: 32PTC-6

Technical Specifications

• Max. Working Pressure: 250 psi
• Working Temperature: -40 °F to 200 °F
• Suitable Fluids: Compressed air only
• Body Material: Nylon composite
• Fitting Description: Straight Union
• Size Type: Fractional, Equal Ends
• Tube O.D.: 3/8 inch
• No. of Ends: 2
• Fitting Angle: Straight
• Weight: 0.05 LB
