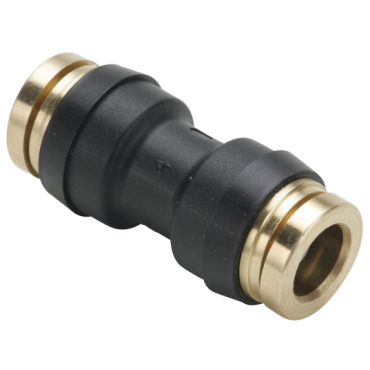

Legris 32PTC-12 DOT FMVSS 106 Fitting - Straight Dot Union Tube X Tube

Product Description

The Legris 32PTC-12 is a DOT FMVSS 106 push-to-connect fitting designed for quick and easy connections of flexible tubing in automotive and truck applications. To create a strong and leak-free connection, simply push the tubing into the fitting. Disconnections are just as easy; press the plastic release cap to remove the tubing without tools. This fitting is made from glass-reinforced nylon with nickel-plated brass threaded components. It also features low-temperature Buna-Nitrile elastomer seals, ensuring compliance with SAE and NHTSA FMVSS 106 standards.

• Simple push-to-connect design
• Requires no tools for assembly
• Constructed from high-quality materials

Product Highlights

Ideal for both static and dynamic applications, this fitting is suitable for fractional inch tubing and performs well under varied temperatures.

Product Information

Standard Information

• Brand: Legris
• MPN: 32PTC-12

Technical Specifications

• Max. Working Pressure: 250 psi
• Working Temperature: -40 °F to 200 °F
• Suitable Fluids: Compressed air only
• Material of Construction: Composite body, brass collet, stainless steel tube support, Buna-N o-ring
• End Types: Tubing
• No. of Ends: 2
• Fitting Angle: Straight
• Tube O.D.: 3/4 in
• Weight: 0.165 lb
