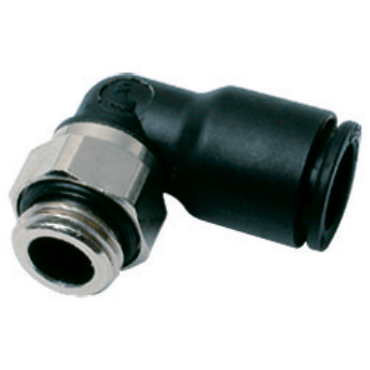

Legris 31991221 Push to Connect Fitting 90 Degree 12mm Tube Female 1/2

Product Description

Legris 31991221 is a push-to-connect fitting designed for pneumatic applications. This fitting connects semirigid plastic tubing easily, requiring minimal labor. It features a body made of glass-filled nylon, with nickel-plated brass for threaded components and buna-nitrile elastomer seals.

• Easy to install and remove without tools
• Reusable and does not deform tubing
• Rotate elbows and tees 360 degrees

Product Highlights

This fitting is suitable for nylon, polyurethane, polyethylene, or Teflon tubing. A leak-free connection is achieved by pushing the tube into the patented stainless steel gripping ring, making it convenient for various pneumatic setups.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31991221

Technical Specifications

• Max Working Pressure: 275 psi
• Fitting Description: Male Elbow
• End Size: 12 mm Tube(f)
• Thread Type: BSPP
• Fitting Angle: 90 degrees
• Overall Length: 31 mm
• Height: 25 mm
• Weight: 0.198 LB
