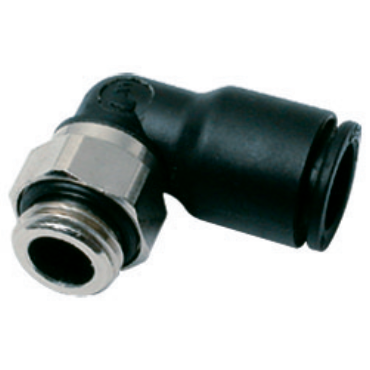

Legris 31991217 Push to Connect Fitting 275 psi 12mm Tube(f)

Product Description

Legris 31991217 is a push-to-connect fitting designed for connecting semirigid plastic tubing in pneumatic applications. This fitting uses little labor and time for installation. The body consists of glass-filled nylon, while the threaded parts are made of nickel-plated brass. It features buna-nitrile seals that ensure leak-free connections.

• Max. Working Pressure: 275 psi
• Thread sealant is pre-applied
• Elbows and tees rotate 360 degrees

Product Highlights

Simple installation with minimal effort, reusable fittings, and compatible with various tubing materials.

Product Information

Standard Information

• Brand: Legris
• Part #: 102095369

Technical Specifications

• Thread Type: BSPP
• End Size: 12 mm Tube(f)
• Material: Nylon body, nickel-plated brass with O ring seal
• Overall Length: 31 mm
• Hex Size: 20 mm
• Thread Size: 3/8
• End Types: Tubing & BSPP
• Height: 25 mm
• Fitting Angle: 90 degrees
• Fitting Description: Male Elbow
• No. of Ends: 2
• Origin: Plastic Push to Connect Fittings
• Tube O.D.: 12 mm
• Weight: 0.152 LB
• EAN or UPC: 820099260150
