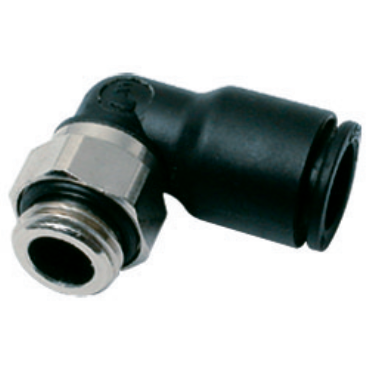

Legris 31991021 90 Male Elbow each

Product Description

The Legris 31991021 is a 90-degree male elbow fitting designed for seamless connection of ten millimeter outer diameter tubing in pneumatic systems. This fitting is constructed from durable materials such as glass-filled nylon and nickel-plated brass for the threaded components. It features elastomer seals made from buna-nitrile. The push-to-connect design allows for quick and easy installation. Simply push the tubing into the stainless steel gripping ring for a secure, leak-free connection without the need for additional tools.

• Compatible with nylon, polyurethane, polyethylene, or Teflon tubing
• Reversible and reusable design
• Standard plastic release button for easy disconnection

Product Highlights

Ideal for pneumatic applications, the fitting supports a maximum working pressure of two hundred ninety psi and operates effectively within a temperature range of minus four degrees Fahrenheit to one hundred seventy-five degrees Fahrenheit.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31991021

Technical Specifications

• Tube O.D.: 10.000 mm
• Fitting Angle: 90°
• Material: Nickel-Plated Brass
• Hex Size: 24 mm
• Height: 22.000 mm
• End Types: Tubing & BSPP
• Thread Size: 1/2
• End Size: 10 mm Tube(f)
• Fitting Description: 90° Male Elbow
• Size Type: Metric Sizes
• No. of Ends: 2
• Body Material: Nickel-Plated Brass
• Thread Type: BSPP
• Overall Length: 26.500 mm
• Weight: 0.079 LB
• EAN or UPC: 820099259864
