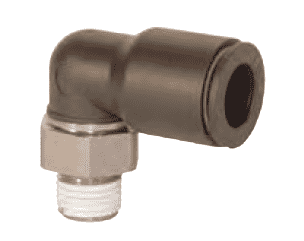

Legris 31990813 90 Male Elbow

Product Description

Legris 31990813 is a 90 Male Elbow fitting designed for use with 8 millimeter outer diameter tubing. This fitting connects semirigid plastic tubing in pneumatic systems efficiently, requiring minimal labor and time. Made from glass-filled nylon and featuring nickel-plated brass threaded components, the fitting ensures a robust and reliable connection. The design incorporates buna-nitrile elastomer seals for a tight, leak-free connection. Simply push the tubing into the patented stainless steel gripping ring for a secure fit. Each fitting includes a plastic release button allowing for easy connection or disconnection without tools, preserving the integrity of the tubing. This fitting is reusable and compatible with various tubing materials such as nylon, polyurethane, polyethylene, or Teflon.

• Max. working pressure: 290 psi
• Working temperature range: -4 °F to 175 °F
• Rotates 360° for ease of assembly

Product Highlights

Durable construction with easy installation and maintenance.

Product Information

Standard Information

• Brand: Legris
• Part Number: 31990813

Technical Specifications

• Fitting Description: 90° Male Elbow
• Material: Nickel-Plated Brass
• Body Material: Glass-Filled Nylon
• Thread Type: BSPP
• Hex Size: 16 mm
• End Types: Tubing & BSPP
• No. of Ends: 2
• Thread Size: 1/4
• Height: 18.500 mm
• Size Type: Metric Sizes
• Tube O.D.: 5/16 in, 8.000 mm
• Fitting Angle: 90°
• End Size: 5/16 or 8 mm Tube(f)
• Weight: 0.037 LB
• EAN or UPC: 820099259093
