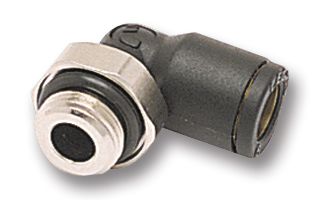

Legris 31990619 90 Male Elbow

Product Description

Legris 31990619 is a 90-degree male elbow designed for connecting six millimeter outer diameter tubing in pneumatic applications. This fitting allows for easy connections and disconnections. The body is made of glass-filled nylon, and it features nickel-plated brass threaded components and buna-nitrile elastomer seals. The patented stainless steel gripping ring ensures a secure, leak-free connection by simply pushing the tubing in. Each fitting includes a plastic release button for easy operation without tools.

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg

Product Highlights

This product rotates 360° for easier assembly. The thread sealant is pre-applied on tapered threads for convenience.

Product Information

Standard Information

• Brand: Legris
• MPN: 31990619

Technical Specifications

• Fitting Angle: 90°
• Fitting Description: 90° Male Elbow
• Thread Size: M5
• End Types: Tubing & Metric Thread
• Body Material: Nickel-Plated Brass
• Hex Size: 8 mm
• Tube O.D.: 6.000 mm
• No. of Ends: 2
• Thread Type: BSPP
• End Size: 6 mm Tube(f)
• Height: 15.500 mm
• Weight: 0.033 LB
• EAN or UPC: 820099258577
