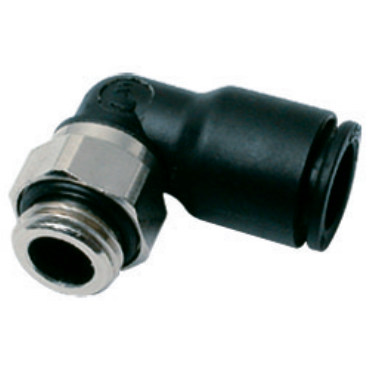

Legris 31990419 90 Male Elbow

Product Description

Legris 31990419 is a 90 degree male elbow fitting designed for 4mm O.D. tubing. This fitting allows for quick and easy connections in pneumatic systems. The design reduces labor time significantly while maintaining a reliable and leak-free connection.

• Constructed of high-strength nickel-plated brass.
• Utilizes buna-nitrile seals for effective performance.
• Features a unique stainless steel gripping ring for secure tubing hold.

Product Highlights

This fitting rotates 360 degrees for easy assembly and comes with pre-applied thread sealant, eliminating the need for additional sealing materials.

Product Information

Standard Information

• Brand: Legris
• MPN: 31990419

Technical Specifications

• Max. working pressure: 290 psi
• Working temperature: -4 °F to 175 °F
• Vacuum rating: 28 Hg
• Fitting angle: 90°
• End types: Tubing & Metric Thread
• Thread size: M5
• Body material: Nickel-Plated Brass
• Weight: 0.006 LB
