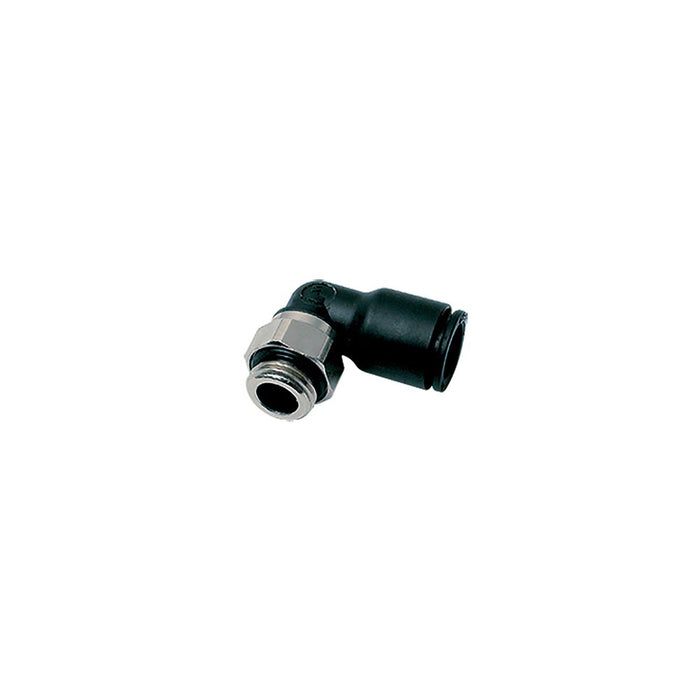

Legris 31990409 Push to Connect Fitting - Male Elbow for 4mm O.D. Tubing

Product Description

The Legris 31990409 is a push-to-connect fitting designed for quick and simple installations. This male elbow fitting is made for four millimeter outer diameter tubing and features a three millimeter male metric port size. It connects tubing securely while maintaining a leak-free seal.

• Designed for 4mm O.D. tubing
• 3mm male metric port size
• Constructed with a nylon body and nickel-plated brass

Product Highlights

Ideal for fluid transfer in various applications where swift connections are necessary.

Product Information

Standard Information

• Brand: Legris
• Part Number: 102159715

Technical Specifications

• Fitting Type: Male Elbow
• No. of Ends: 2
• Thread Type: Metric
• Fitting Angle: 90 degrees
• Height: 15.000 mm
• End Size: 5/32 or 4 mm Tube (f)
• Tube O.D.: 4.000 mm
• Thread Size: M3
• Overall Length: 14.5 mm
• Hex Size: 8 mm
• Material: Nylon body with nickel-plated brass and O-ring seal
• Weight: 0.006 lb
• EAN or UPC: 820099257495
