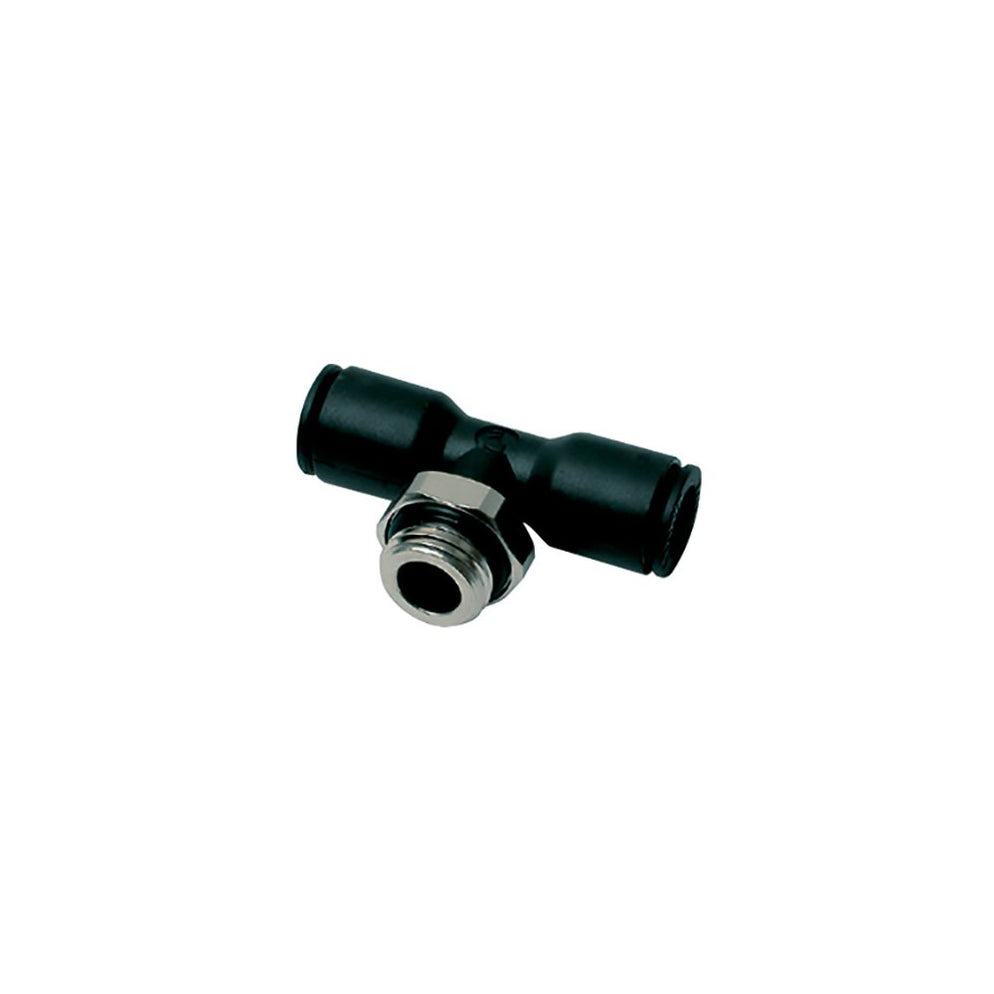

Legris 31981417 Push to Connect Fitting 290 psi 14 mm Tube x BSPP Threads

Product Description

Legris 31981417 is a push-to-connect fitting designed for quick and reliable connections of semi-rigid plastic tubing in pneumatic systems. The body is made from glass-filled nylon, while the threaded components are nickel-plated brass. Buna-nitrile seals ensure a leak-free connection. Users can easily connect or disconnect the tubing with minimal force, requiring no tools. These fittings are reusable and do not deform the tubing. They are suitable for nylon, polyurethane, polyethylene, and Teflon tubing.

• Max working pressure of 290 psi
• Working temperature range from -4°F to 175°F
• Vacuum rating of 28 Hg

Product Highlights

This fitting provides a strong and stable connection that is easy to install and maintain, making it ideal for various pneumatic applications.

Product Information

Standard Information

• Brand: Legris
• MPN: 31981417

Technical Specifications

• Size Type: Metric Tube x BSPP Threads
• Origin: Plastic Push to Connect Fittings
• Material: Nylon body, O ring seal, nickel-plated brass base
• Thread Size: 3/8
• Hex Size: 20 mm
• End Size: 14 mm Tube(f)
• Tube O.D.: 14.000 mm
• Thread Type: BSPP
• Fitting Description: Male Branch Tee
• Fitting Angle: 90°
• Height: 32.500 mm
• No. of Ends: 3
• End Types: Tubing & BSPP
• Weight: 0.242 LB
• EAN or UPC: 820099256320
